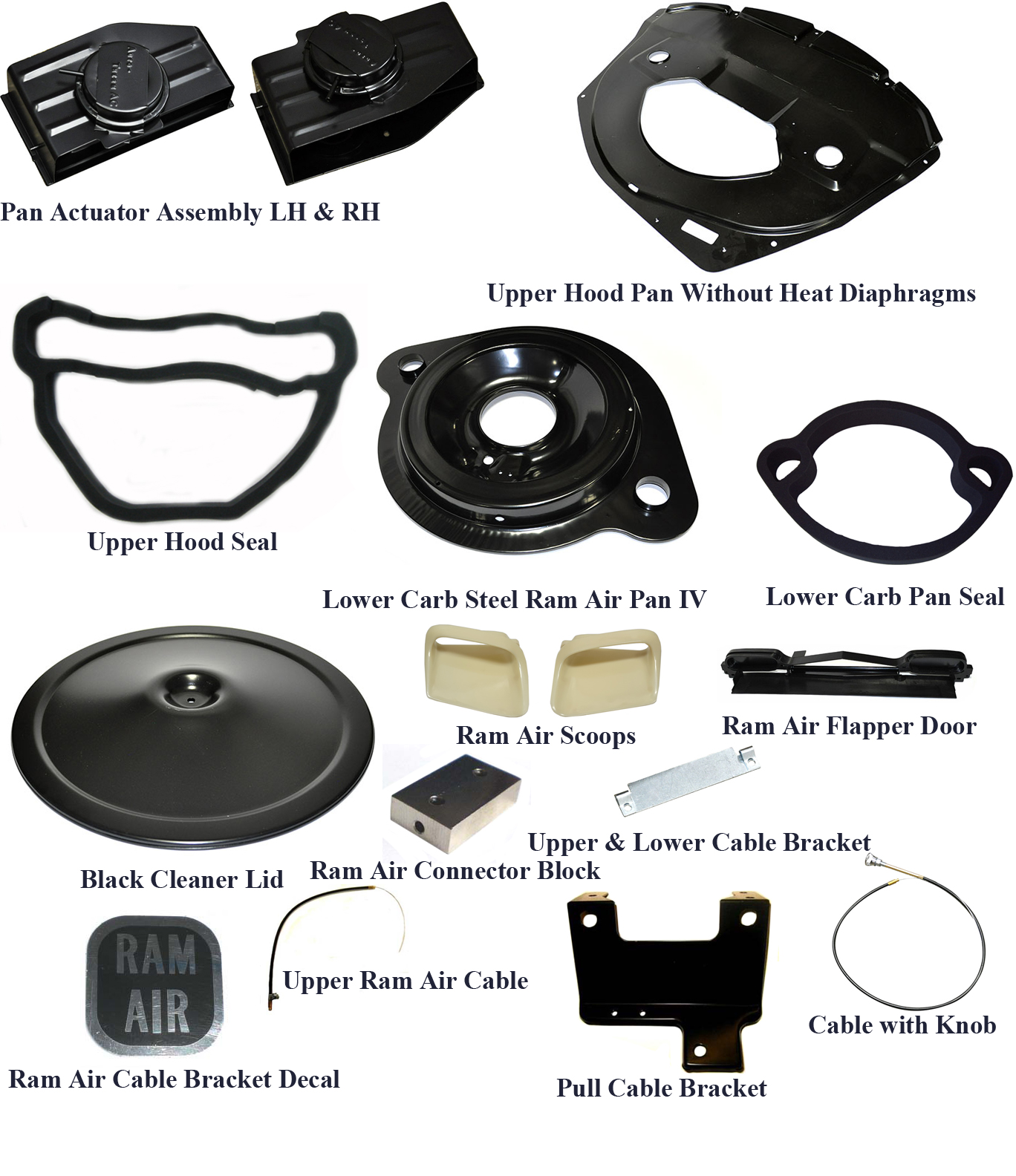

RAM AIR IV KIT*
THIS KIT INCLUDES A TOTAL OF 23 PARTS
INCLUDES:
- 1 UPPER PAN BARE (CW1999G) # 276
- 1 LH PAN ACTUATOR ASSEMBLY W/HEAT DIAPHRAGM (CW10089G) ZRPAA69FL
- 1 RH PAN ACTUATOR ASSEMBLY W/HEAT DIAPHRAGM (CW10090G) ZRPAA69FR
- 1 PC OF VACUUM HOSE 3FT
- 2 PC OF VACUUM HOSE 18”
- 1 VACUUM TEE # 12918
- 4 RIVETS # 17420
- 1 LOWER CARB STEEL RAM AIR PAN IV (CW1777G) DQ-0370B
- 1 UPPER HOOD SEAL (CW1795G) FPA69H
- 1 LOWER CARB PAN SEAL (CW1792G) FPA69C
- 1 BLACK CLEANER LID (CW12314Z) R017
- 1 PAIR RAM AIR SCOOPS (BP1183G) ZRAHS6870C
- 1 RAM AIR FLAPPER DOOR (CW1810G) ZFD6970A
- 1 UPPER RAM AIR CABLE (CW4637Z) ZRC69F
- 1 RAM AIR CONNECTOR BLOCK (CW4649Z) ZCBL69F
- 1 RAM AIR UPPER & LOWER CABLE BRACKET (CW1818Z) ZCBR69F
- 1 LOWER RAM AIR CABLE WITH KNOB (CW4633Z) ZLRC69F
*IF YOU CAR DID NOT PREVIOUSLY HAVE RAM AIR YOU WILL NEED TO CUT THE FRAME BRACING ON THE UNDERSIDE OF THE HOOD, WE CARRY A TEMPLATE YOU CAN PURCHASE.
