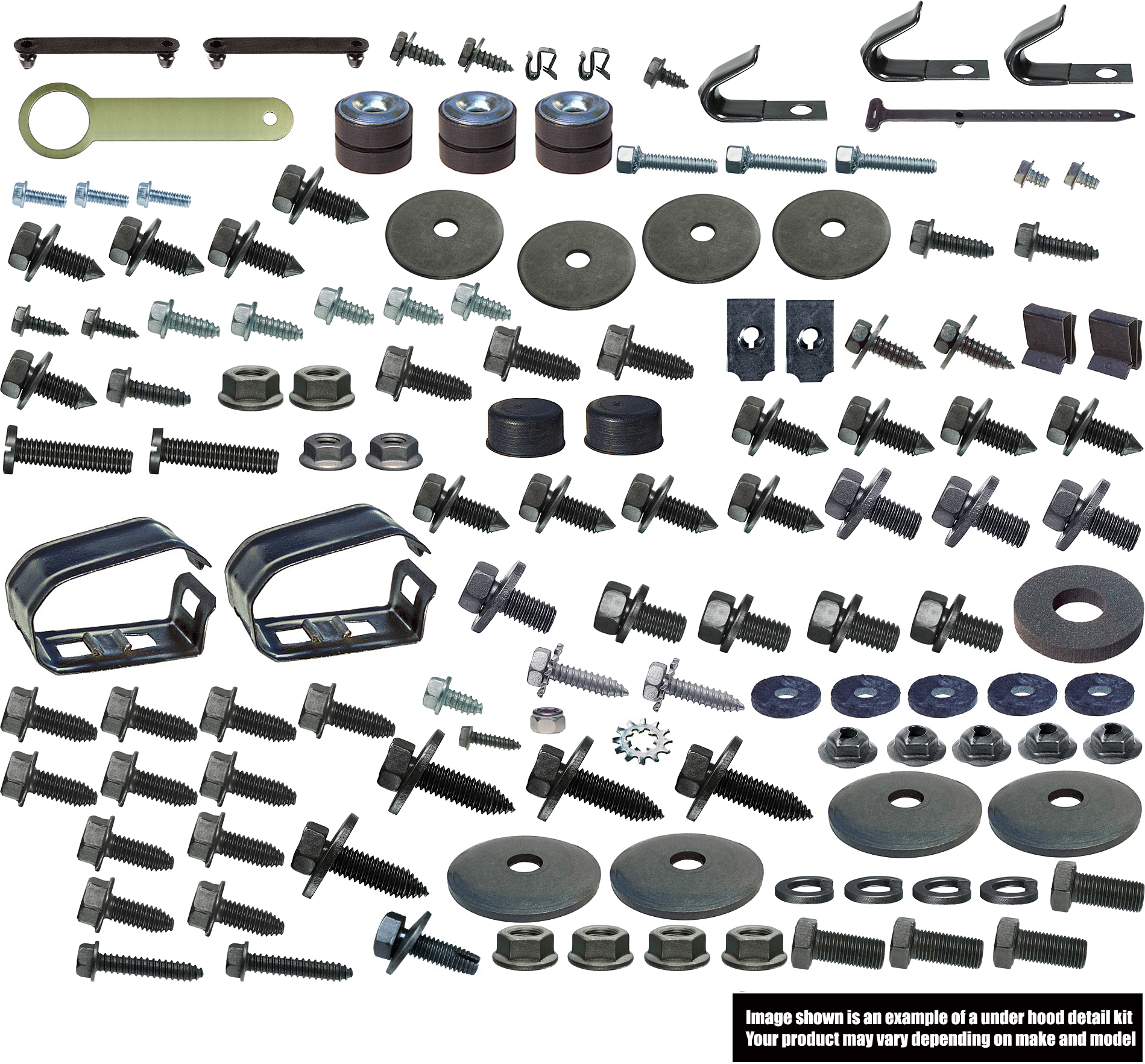

1967 Chevrolet Chevelle/Malibu MASTER UNDERHOOD DETAILING KIT (162 PIECES)

ACCELERATOR LEVER & SUPPORT

HX BOLT, HXWA AB SCREWS, WA'S, NUT

6

BATTERY CABLE ROUTING CLIP > FRAME

HXWA T1 SCREW, TOOTH WA

2

BATTERY HOLDOWN CLAMP

HX CONI SEMS

1

BRAKE BOOSTER

HX NUTS, SPLIT WA'S

8

CONTROL ARM CROSS SHAFT (UPR)

RETAINERS, HX BOLTS "SSC", WA'S

12

FENDERS > FIREWALL (also in fender kits)

LARGE HX CONI SEMS

4

FENDERS > RAD SUPPORT (also in fender kit)

HX PP CONI SEMS, HXWA PP SCREWS

4

FENDERS TIE BAR

HXWA PP SCREWS, RIVETS

4

GRILLE

RIVETS, SCREW, NUT

16

H/L, P/L GROUNDS, JUNCTION BLOCK

HXWA AB & B SCREWS, TOOTH WA'S

5

HEATER BOX & BLOWER HSNG > FIREWALL

HX INT/EXT SEMS, STMPD NUTS, SEALER, SEAL

13

HEATER HOSE CLIP @ WHEELHOUSE

FOLDOVER METAL CLIP

1

HOOD & HINGES

HX CONI SEMS

8

HOOD CATCH & LOCK PLATE

HX PP CONI SEMS

9

HOOD LEVELERS (Fr)

SCREWS, FLNG NUTS, RUBBER BUMPERS

6

HORN RELAY

HXWA AB SCREW

1

HORNS

HX PP CONI TOOTH SEMS

2

MASTER CYLINDER

HX NUTS, SPLIT WA'S

4

RADIATOR & CENTER SHROUD (SB only 65, 67)

HX PP CONI SEMS, U-NUTS

12

RADIO GROUND STRAPS > FIREWALL

HXWA AB SCREWS

2

VOLTAGE REGULATOR

SRTD HXWA MS SCREWS, WELL-NUTS

6

WHEELHOUSES > FENDERS (also in WH kit)

HX PP CONI SEMS, CUP WA'S, U-NUTS

12

WINDSHIELD WASHER BOTTLE BRACKET

HXWA AB SCREWS, RUBBER CAPS

6

WINDSHIELD WASHER NOZZLES

#8 HXWA B SCREWS

2

WINDSHIELD WIPER HOSES

3" NYLON STRAPS

3

WIPER MOTOR (Square Style)

GROMMETS, 1.71 OAL STRAP, RIVET, SCREWS

8

WIRING - BLOWER MOTOR/STARTER WIRING

RUBBER COATED J-CLIPS

2

WIRING - BRAKE WARNING SWITCH > LINE

3.17" NYLON STRAP

1

WIRING "GUTTER" > FIREWALL

HX AB FLAT SEMS

2
