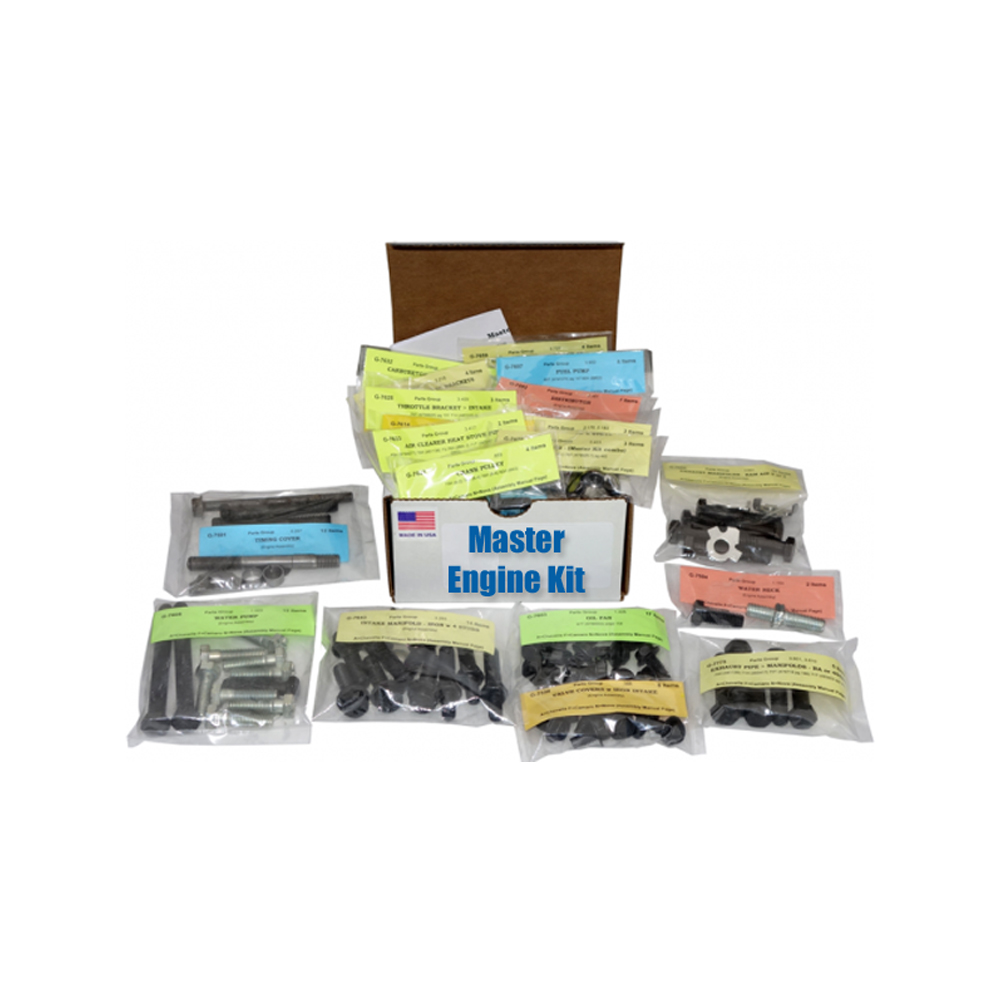

1967 Pontiac GTO/LeMans/Tempest MASTER ENGINE HARDWARE KIT 400-4V MOTOR 151 PIECES

AIR CLEANER - 400-4V (exc. HO, RA, A.I.R.)

3.25" L STUD, CHROME WING NUT

2

CARBURETOR - ROCHESTER 4V w/o SMOG

HX BOLTS, STUD w TUBE, HX NUT, VAC CAP

6

CARBURETOR CHOKE THERMOSTAT

PH PN EXT SEMS

1

CRANK DAMPER

HX BOLT, HVY FLAT WA

2

CRANK PULLEY

5/16-24 X 3/4" PLACE BOLTS

6

DISTRIBUTOR

HX SPLIT SEMS MS

1

ENGINE BLOCK PLUGS

1/8-27 HX PLUGS

2

ENGINE FAN > CLUTCH

5/16-18 X 5/8" PLACE BOLTS

4

EXHAUST MANIFOLDS - STD 389/400

HX BOLTS, SS LOCKS

21

EXHAUST PIPE > MANIFOLDS - STD

1.0" & 1.38" HX BOLTS

4

FAN CLUTCH > WATER PUMP

5/16-24 X 3/4" PLACE BOLTS

4

FUEL PUMP

12 PT FLNG BOLTS, ALUM-N SEALING WA's

4

IGNITION COIL & STRAP

HX BOLT, SLT RND MS

2

IGNITION WIRE and MISC BRACKETS

HX BOLTS

4

INTAKE MANIFOLD - 4V

HIGH HX "SBC" BOLTS, FLAT WA'S

20

OIL FILTER ASSEMBLY > BLOCK

HX BOLTS, SPLIT WA'S, 1 FLAT WA

9

OIL PAN

HXWA MS "W" in ROUND INDENT

17

THROTTLE BRACKET > INTAKE

HX BOLT

1

THROTTLE BRACKET CLAMP

HXWA TY-T SCREW

1

TIMING COVER

HX BOLTS, STUDS, DOWELS, WA'S, CLAMP

17

VALVE COVERS w IRON INTAKE

BLK ZC HXWA MS "E" in HX SHAPED INDENT

8

WATER NECK

HX BOLT, HX CLR STUD, FLAT WA'S

4

WATER PUMP

PLACE BOLTS, STUDS, MARSEN NUTS

11
