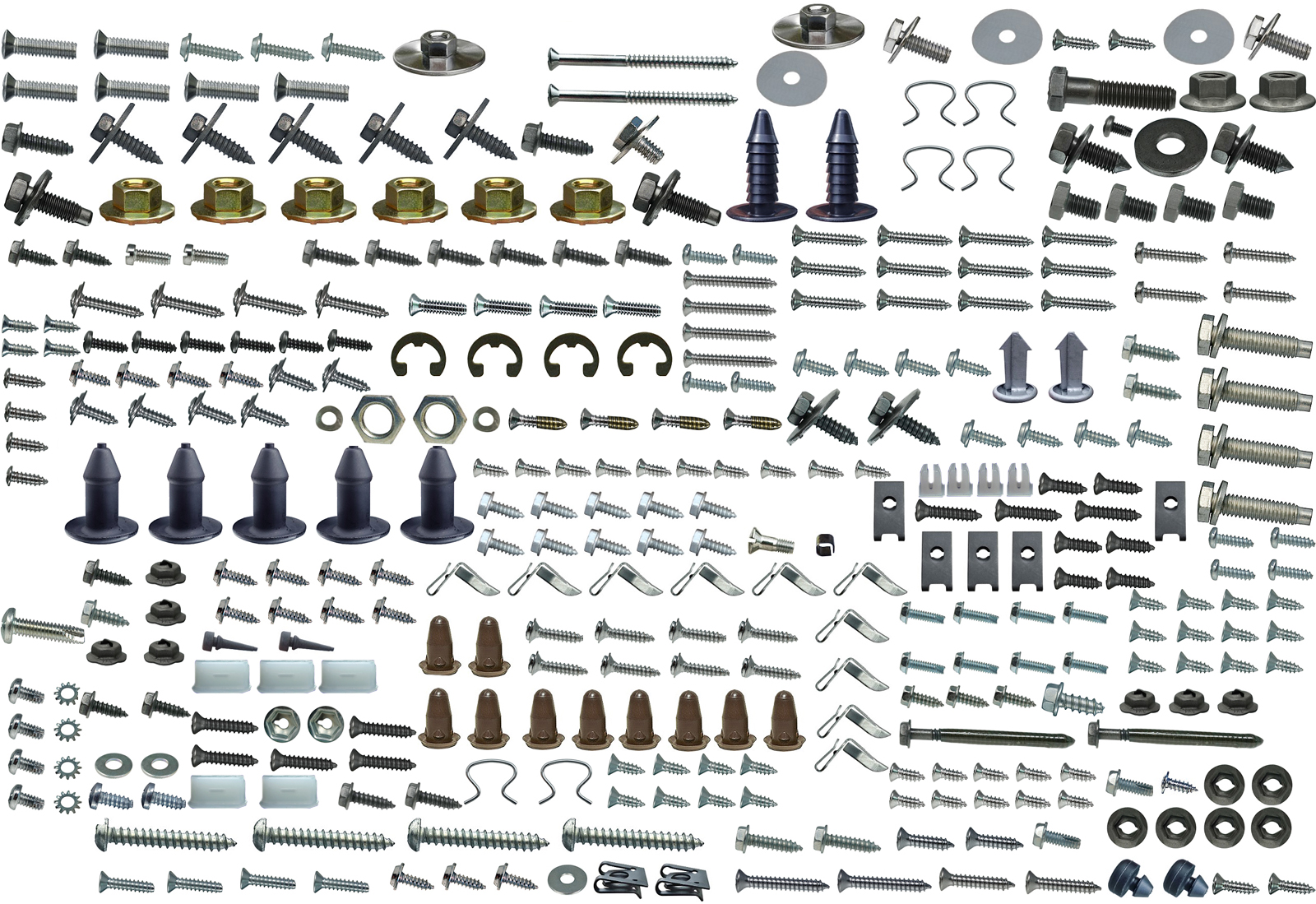

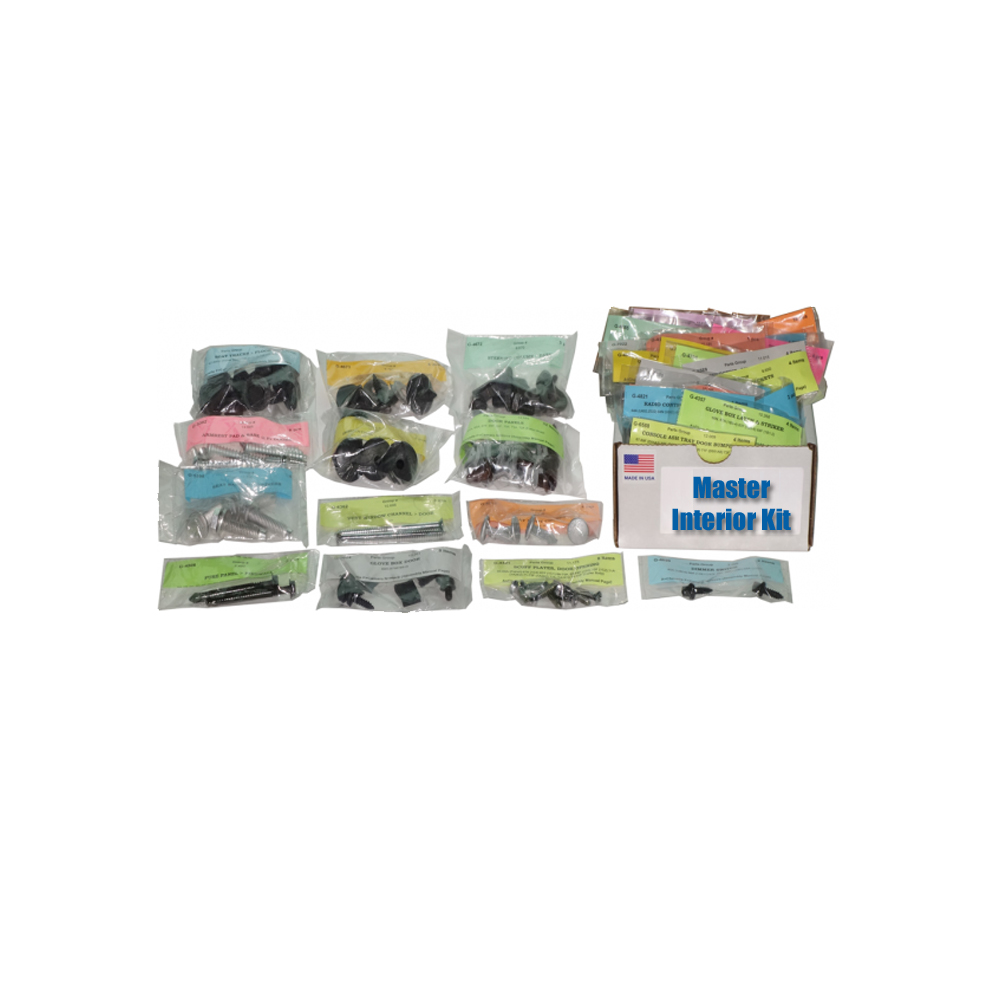

1967 Pontiac GTO/LeMans/Tempest MASTER INTERIOR FASTENER KIT CONVERTIBLE 355 PIECES

Application

Notes

Pieces

ARMREST PAD & BASE @ Fr DOORS

PH FLAT B & PH RND A SCREWS

8

ASH TRAY RETAINER

PH RND WA AB, SPRNG NUTS, FLAT WA

6

CONSOLE > FLOOR

PH OV & HXWA AB SCREWS

8

CONSOLE DOOR & HINGE

PH PN SCREWS, TOOTH WA'S

8

CONSOLE DOOR BUMPERS

.50 D X .25 H BUMPERS

2

CONSOLE LAMP LENS

PH OV AB SCREWS

2

CONSOLE TOP MOULDING

NUTS, HXWA & RNDWA SCREWS (M/T ONLY)

9

COURTESY LAMPS, UNDERDASH

PH PN AB SCREWS, FLAT WA'S

4

DASH PAD

PH OV AB SCREWS, STAMPED & NYLON NUTS

12

DIMMER SWITCH

HXWA AB SCREWS

2

DOOR HANDLES (inside) - STD

WIRE RETAINERS

2

DOOR JAMB WEDGES - CONVERTIBLE

PH FLAT AB SCREWS

8

DOOR PANELS

CLIPS, PLUGS (flexible!), PH OV AB SEMS

28

FILLER PANEL - CONVERT BEHIND Rr SEAT

CHROME PH RNDWA AB SCREWS

10

FUSE PANEL > FIREWALL

#10 x 2 1/4 HXWA AB SCREWS w SEALER

2

GLOVE BOX BUMPERS

.24 D X .12 H FLAT TOP BUMPERS

2

GLOVE BOX DOOR, LINER & STRIKER

RNDWA AB SCREWS

8

HEATER CONTROL & SUPPORT > DASH

.56 D #10 STMPD NUTS, HXWA SCREWS

6

HEATER or AC OUTLET (LH under dash)

HXWA AB SCREWS

2

INSTRUMENT CLUSTER > BEZEL

INCLUDES BRACKET SCREWS

12

INSTRUMENT CLUSTER BEZEL > DASH

PH OV AB SCREWS, SPRG NUTS, NYLON NUTS

18

INSTRUMENT PANEL NAMEPLATE "GTO"

.56 D #10 STAMPED NUTS

3

INSULATION > FIREWALL

RUBBER RETAINERS

5

KICK PANELS w/o AC

HXWA SCREWS

10

MIRROR (INSIDE) > BRACKET

CHROME SLOT OV SHLDR SCREW, BUSHING

2

MOULDING - CONVERTIBLE HEADER

SS/CHROME PH OV AB SCREWS

6

MOULDINGS @ DOOR/QTER TRIM PANEL TOPS

PH FLAT AB SCREWS

18

QUARTER TRIM PANELS - CONVERTIBLE

PH OV .50 SEMS, PH PN & PH RNDWA SCREWS

20

RADIO CONTROL SHAFTS & KNOBS

SPECIAL THIN HX NUTS, SPRING WA'S

4

SCUFF PLATES @ DOOR OPENING

SS/CHROME PH OV AB SCREWS

8

SEAT BACK (Fr) STOP BUMPERS

PH PN AB SCREWS

4

SEAT BACK (Fr) STRIKERS (A-body bench)

TRIM HX .62 CONI SEMS w PILOT

4

SEAT BACK (Rr) > FLOOR

HX AB CONI TOOTH SEMS

2

SEAT BACK PANELS

PH PNWA FLAT TOP SCREWS

4

SEAT BACK PIVOTS

RETANING CLIPS

4

SEAT BACK RELEASE BEZELS (Bench only)

CHROME PH OV AB SCEWS

4

SEAT BACK RELEASE ESCUTCHEONS

CHROME PH OV & PN AB SCREWS

8

SEAT BELT BEZELS (Bench only)

PH RNDWA AB SCREWS

4

SEAT PIVOT COVERS

SPLIT DART METAL RETAINERS

2

SEAT SIDE PANELS

CHROME PH OV AB SCREWS

12

SEAT TRACKS > FLOOR

HX CONI TOOTH SEMS (2), PERI KEPS

8

SHIFTER "PORCH" (M/T TUNNEL ADAPTER)

HXWA AB SCREWS

6

SHIFTER BEZEL - A/T CONSOLE

CHROME PH OV MS's #8 HD

4

SHIFTER BOOT RETAINER - M/T CONSOLE

HXWA AB SCREWS

2

SHIFTER CABLE SEAL RETAINER (console)

HXWA AB SCREWS

2

SHIFTER LEVER PLATE (MT w/o console)

CHROME PH PN AB

4

STEERING COLUMN > DASH

HX PP SEMS, HX BOLTS, NUTS, WA

11

STEERING COLUMN COVER > FIREWALL

PLASTIC RETAINERS

2

STEERING COLUMN SEAL RETAINER

HXWA AB SCREWS

7

SUN VISOR & MIRROR BRACKETS - CONV

CHROME PH OV MS's, PH RNDWA AB SCREWS

9

SUN VISOR CLAMPS

CHROME SLOT FILL SCREWS

2

TURN SIGNAL LEVER

PH PN T SCREW

1

VENT WINDOW CHANNEL > DOOR

#10 X 2 1/2" SS/CHROME PH OV SCREWS

2

VENT WINDOW FRAME > DOORS

CHROME HX CONI SEMS, CONI KEPS, WA'S

8

WEATHERSTRIP - QUARTER GLASS "U"

PH FLT AB SCREWS

4

WINDLACE END CAPS @ QUARTER

CHROME RNDWA AB SCREWS

4

WINDOW CRANK HANDLES

RETAINING CLIPS

4

WINDOW RUN (Rr) > DOORS

CHROME HX CONI SEMS, PLASTIC WA'S

4
