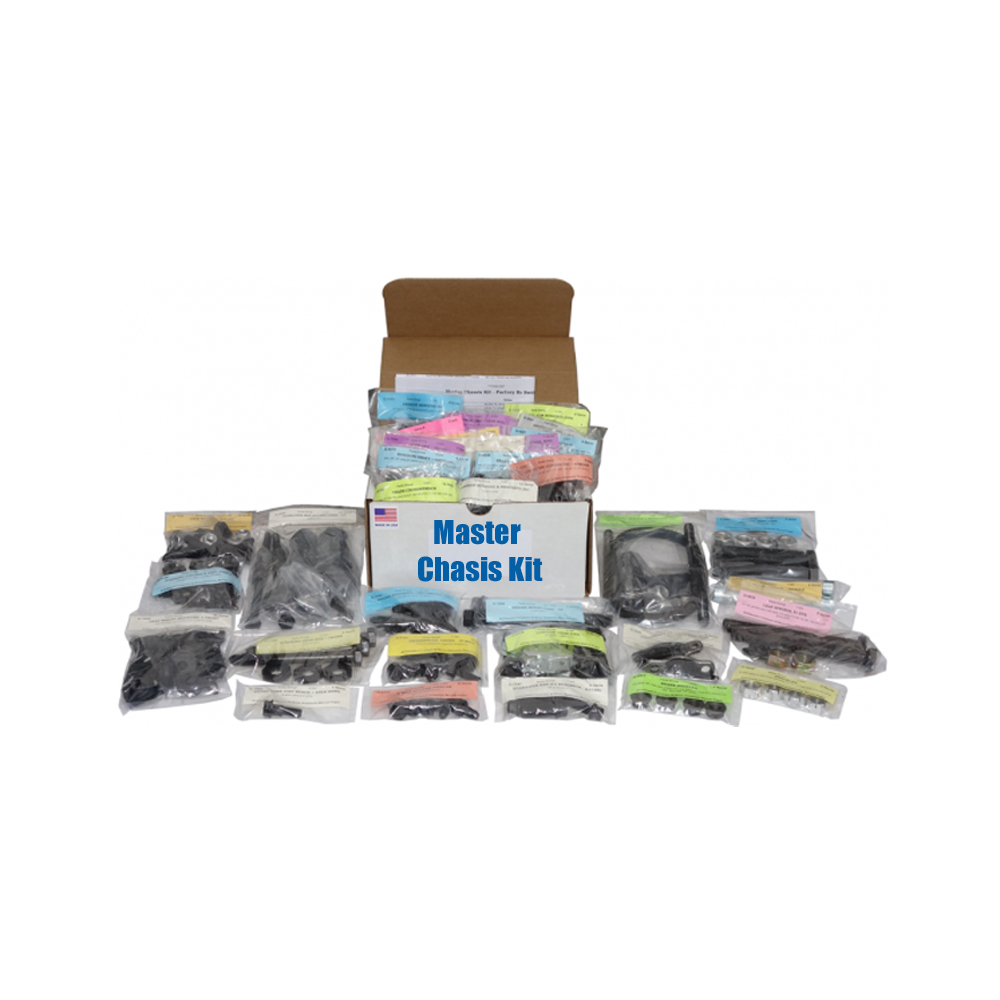

1968 Pontiac GTO/LeMans/Tempest MASTER CHASSIS FASTENER KIT V8 WITH DRUM BRAKES 330 PIECES

ACCELERATOR SUPPORT > DASH

HXWA AB SCREWS

5

AXLE RETAINER PLATES

T-BOLTS, LOCK NUTS

16

BRAKE BOOSTER

FLNG NUTS

4

BRAKE CABLES

WIRE TYPE RETAINERS, HX NUTS

5

BRAKE DISTRIBUTION BLOCK

@ FRONT FRAME. HXWA AB SCREW

1

BRAKE DISTRIBUTION BLOCK (Rr) > BRKT

HX BOLT

1

BRAKE HOSE BRACKETS (Fr) > FRAME

HXWA AB SCREWS

2

BRAKE HOSE BRKT > FR BACKING PLATES

HXWA AB SCREWS

4

BRAKE HOSE RETAINERS w DRUM

U-RETAINERS

5

BRAKE PLATE ASSEMBLY (Fr Drum) > SPINDLE

1/2" SIZE GR-8 HX BOLTS, LOCK NUTS

8

CLUTCH BELLCRANK BRACKET > FRAME

LRG HXWA AB SCREWS

2

CONTROL ARM BUSHINGS (UPR)

RETAINERS, LOCK NUTS

8

CONTROL ARMS (LWR)

POINTED BOLTS, LOCK NUTS

8

CONTROL ARMS (Rr)

GR8 FLNG & HX BOLTS, LOCK NUTS

16

CONTROL ARMS (Rr) REINFORCEMENTS

HARDENED FLAT WA'S

2

CONTROL ARMS (UPR)

GR-8 KNURL BOLTS, LOCK NUTS, SHIMS

18

DIFFERENTIAL COVER - 10 BOLT

7/8" L HXWA MACHINE SCREWS

10

DRIVESHAFT > REAR KNUCKLE

U-BOLTS, NUTS, WA'S

10

ENGINE BRACKETS > BLOCK

PLACE BOLTS, FLAT WA'S

8

ENGINE MOUNT THRU - V8

4 7/8" GR-5 HX BOLTS w SPECIAL POINT

2

ENGINE MOUNTS > FRAME

GR-5 HX BOLTS, FLAT WA'S, NUTS

21

EXHAUST HANGERS - DUAL

HXWA C SCREWS, RETAINERS

10

EXHAUST HANGERS - DUAL

HXWA AB SCREWS

10

FUEL HOSES

FLAT WOUND SPRING CLAMPS (Yellow)

4

FUEL RETURN LINES - Pontiac & Chevy 396/454

FLAT WOUND SPRING CLAMPS (Red)

4

GAS TANK

SPECIAL BOLTS, HXWA SCREWS, U-NUTS

8

GREASE FITTINGS

STRAIGHT STYLE

10

IDLER ARM > FRAME

GR-8 HX BOLTS, WA'S, NUTS

6

MASTER CYLINDER

FLNG NUTS

2

MASTER CYLINDER PUSH ROD > PEDAL

RETAINING CLIP

1

PARKING BRAKE CONTROL > DASH

HXWA AB SCREWS, FLNG NUTS

3

PITMAN ARM > GEAR BOX

HX NUT, SPLIT WA

2

SHOCKS (Fr) - LWR MOUNTING

HXWA MS's, J-NUTS

8

SHOCKS (Rr)

HXWA SCREWS, TK NUTS, SPLIT WA'S

12

SPEDOMETER CABLE > M/T, PG & some M38

1/4-20 X 5/8 HX SPLIT SEMS, RETAINER

2

SPEDOMETER CABLE > M38, M40

5/16-18 X 1/2 HX BOLT, Y-SHAPE RETAINER

2

STABILIZER BAR (Fr) BRACKETS

HXWA C SCREWS

4

STABILIZER BAR (Fr) END LINKS

BOLTS, RETAINERS, BUSHINGS, NUTS

22

STEERING GEAR "RAG" JOINT

12 PT BOLT ONLY

1

STEERING GEAR BOX > FRAME

GR-8 HX BOLTS, FLAT WA'S

6

STEERING LINKAGE & BALL JOINTS

SLOTTED NUTS, COTTER PINS

20

STEERING SHAFT > COUPLING

REG & HVY NUTS, SPLIT WA'S

4

SUSPENSION BUMPER (Rr)

HX NUT

1

SUSPENSION BUMPERS (Fr)

HX NUTS

2

TRANS CROSSMEMBER

HX BOLTS, WA'S (RH SIDE), NUTS

14

TRANS INSULATOR

HX BOLTS, FLAT & SPLIT WA'S

10

WHEEL CYLINDERS (4)

HX INT TOOTH SEMS

8
