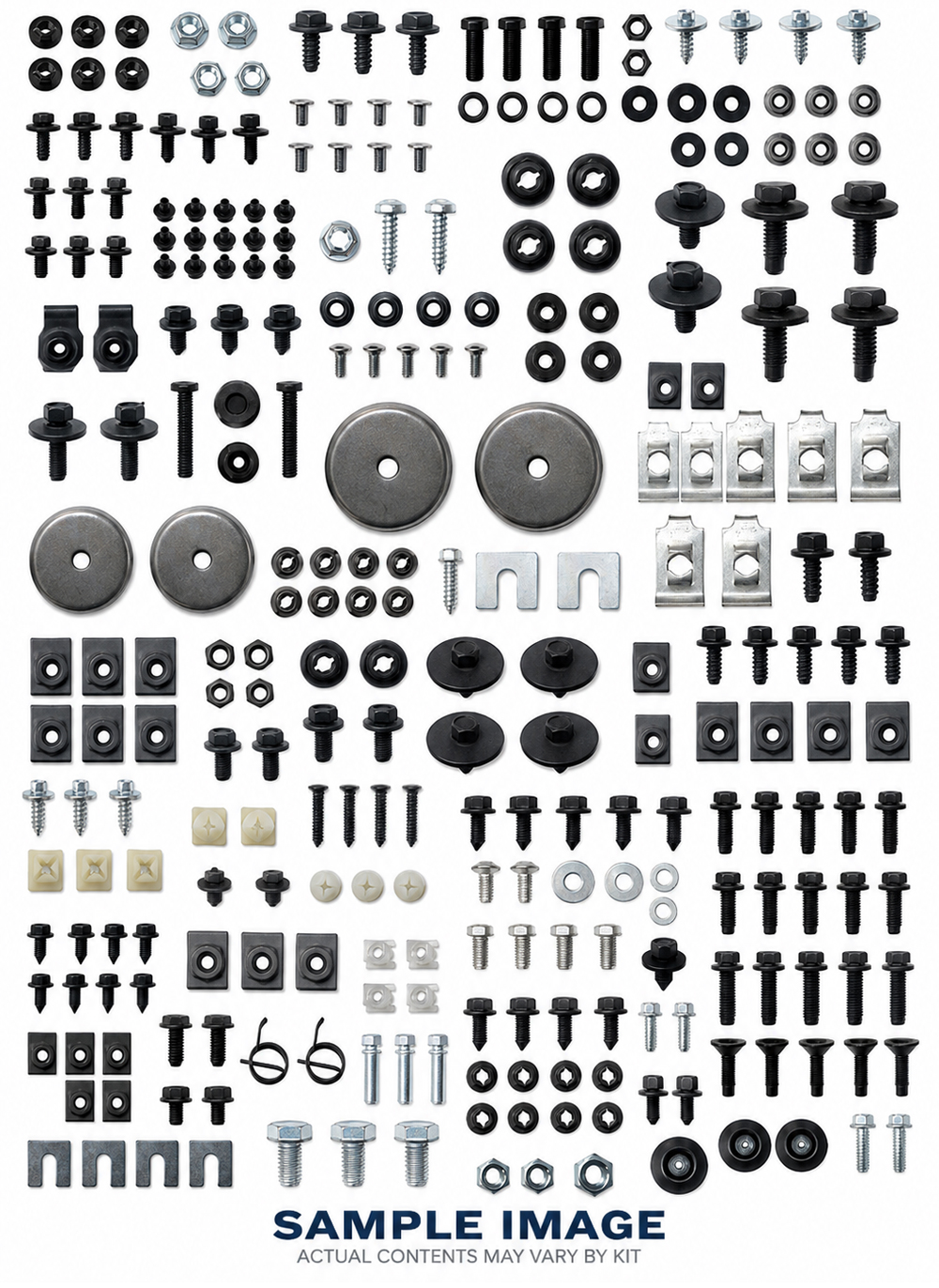

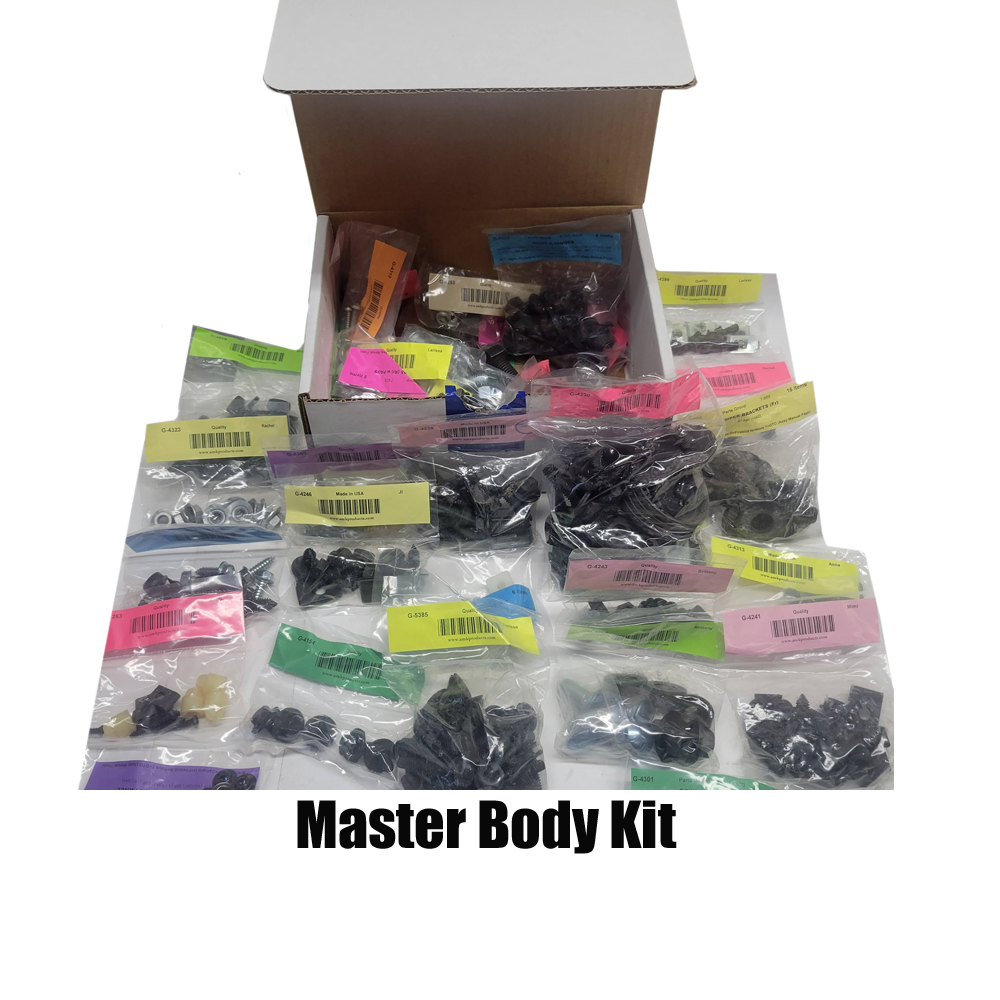

1969 Pontiac Firebird/TransAm MASTER BODY HARDWARE KIT 579 PIECES

BATTERY TRAY

HX CONI SEMS, HXWA PP SCREWS

4

BUMPER (Fr)

CRG BOLTS, CONI KEPS NUTS

28

BUMPER (Fr) FILLER & SEAL

HI-HXWA SCREWS, STMPD NUTS

14

BUMPER (Fr) REINFORCEMENTS

CRG BOLTS, FLAT & SPLIT WA'S, NUTS

40

BUMPER (Fr) STABILIZERS

NUTS & FLAT WA'S ONLY

8

BUMPER (Fr) SUB-ASSEMBLIES @ HEADLAMPS

CRG BOLTS, NUTS, WASHERS

50

BUMPER (Rr)

SS CAPPED BOLTS, KEPS NUTS, SCREWS

18

BUMPER (Rr) BRACKETS

HX PP CONI SEMS, RUBBER WA'S

20

BUMPER BRACKETS (Fr)

CRG BOLTS, RATCHET TOOTH WA'S, NUTS

12

COWL PANEL PLUGS

.88" D 1/2" PLASTIC PLUGS

2

COWL VENT PANEL

HX AB .62 FLAT SEMS

4

DOOR HANDLES (outside)

5/16 AF HX .50 CONI SEMS

4

DOOR HINGES

HX CONI TOOTH SEMS

30

DOOR LATCHES

OV HD TT SCREWS

6

FENDER > RAD SUPPORT BRACES

HXWA PP SCREWS

4

FENDER AIR EXTRACTORS - T/A

8-32 X .47 D STAMPED NUTS

8

FENDER ORNAMENTS

#10 X 1/2 AF HX STAMPED NUTS

8

FENDER SUPPORTS - HARDTOP ONLY

HX BOLTS, FLAT & CLIPPPED WA'S, NUTS

16

FENDERS

HX CONI SEMS, HXWA SCREWS, SHIMS

22

FUEL FILLER DOOR

LOCK NUTS

2

FUEL FILLER DOOR BUMPERS

.41 D X .75 OAH BUMPERS

2

GRILLE & BRACKETS

.61 D HXWA AB SREWS, U-NUTS

24

HEADLAMP ADJUSTERS

ADJUSTER ASSEMBLIES (push-in style), SPRINGS

12

HEADLAMP BEZELS

SS/CHROME PH OV SCREWS, J-NUTS

16

HEADLAMP BODIES & BRACKETS

HX & HXWA AB FLAT SEMS, U-NUTS

20

HOOD & HINGES

HX CONI SEMS

8

HOOD CATCH SUPPORT

HXWA PP SCREW

1

HOOD DUCTS - TRANS AM

HXWA AB SCREWS, SPRG NUTS

8

HOOD LATCH, BRACE, PLATE & SPRING

HXWA PP SCREWS, U-NUTS

15

HOOD LEVELERS (Fr)

SCREWS, FLNG NUTS, RUBBER BUMPERS

6

HOOD ORNAMENTS - 400 RAM AIR

.56 D #10 STAMPED NUTS

4

HOOD VENTS - TRANS AM

8-32 STAMPED NUTS

6

LICENSE PLATE LAMP & LENS

PH PN AB SCREWS, SS PH PN B SCREWS

4

MIRROR & BRACKET - STD

PH OV MS SCREW, PH PN B EXT SEMS

3

NAMEPLATE @ TRUNK LOCK

PHOS EXT KEPS NTS

2

NAMEPLATE, FENDERS - MODEL

.56 D #10 STAMPED NUTS

4

NAMEPLATE, GRILLE

1/8 x .44 D STAMPED NUTS

2

PARKING LAMPS

HX NUTS, TOOTH WA'S

8

RADIATOR SUPPORT > FENDER GUSSETS

PH WAFER SCREWS

4

SPOILER (Rr)

CONI KEPS NUTS, MASTIC SEALER

8

TAILAMPS > BODY

QUICKY BOLTS, CONI TOOTH KEPS NUTS

20

TRUNK LATCH & STRIKER

HX CONI TOOTH SEMS

5

TRUNK LID > HINGES

HX CONI TOOTH SEMS

4

VALANCE (Fr)

HXWA AB & PP SCREWS, U-NUTS

20

VALANCE (Fr) BRACKETS (3)

HXWA PP SCREWS, U-NUTS

8

WHEELHOUSE Rr BRACES > BODY

HX CONI SEMS

4

WHEELHOUSES

HXWA SCREWS, SEMS, CUP WA'S, U-NUTS

50

WHEELHOUSES > RADIATOR SUPPORT

HXWA AB SCREWS, U-NUTS

8
