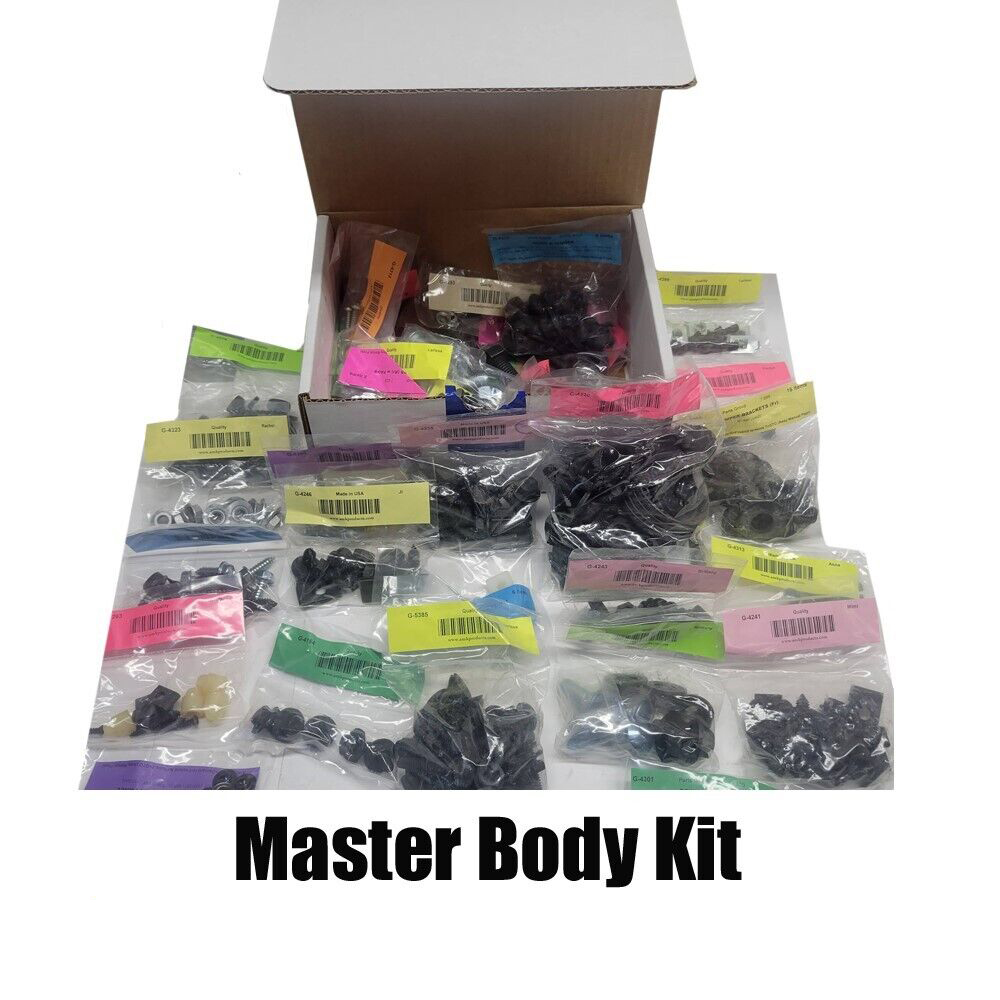

1969 Pontiac GTO/LeMans/Tempest MASTER BODY HARDWARE KIT WITH ENDURA BUMPER 492 PIECES

BATTERY TRAY

HXWA CA SCREWS, U-NUT, FLAT WA

5

BODY PLUGS @ REAR QUARTERS

3/4" PLASTIC PLUGS

2

BUMPER (Fr) BRACKETS

HX BOLTS, RATCHET TOOTH WA'S, NUTS

16

BUMPER (Fr) ENDURA (STD & Hidden H/L)

CRG BOLTS, FLAT & SPLIT WA'S, HX NUTS

26

BUMPER (Fr) STABILIZER BRACKETS

CRG BOLTS, FLAT WA'S, HX NUTS

6

BUMPER (Rr)

SS CAPPED BOLTS, HX BOLTS, WA'S, NUTS

16

BUMPER (Rr) BRACKETS OUTER

HX BOLTS, RATCHET TOOTH WA'S, HX NUTS

16

BUMPER (Rr) SNUBBER > BODY BRKT'S

HXWA C SCREWS

4

BUMPER BRACKET (Rr) CENTER

HX BOLT, FLAT WA'S, HX NUT, SHIMS

8

COWL MESH SCREEN

HX AB FLAT SEMS

4

COWL PANEL PLUGS

.88" D 1/2" PLASTIC PLUGS

2

DOOR HANDLES (outside)

5/16 AF HX .50 CONI SEMS

4

DOOR HINGES

HX CONI TOOTH SEMS

30

DOOR LATCHES

OV HD TT SCREWS

6

FENDERS

HX CONI SEMS, HXWA SCREWS, U-NUTS, SHIMS

34

FENDERS > RAD SUPPORT BRACKETS

5/16" HXWA AB SCREWS, ARCH SPRG NUTS

4

FUEL FILLER DOOR

HXWA B SCREWS

2

FUEL FILLER DOOR BUMPERS

.41 D X .75 OAH BUMPERS

2

GRILLES - BRACKETS - STD & H/L

HXWA AB SCREWS, SPRG NUTS

16

GRILLES - MOULDINGS

8-32 PH PN TR3 SCREWS w #10 HD

16

GRILLES - STD

HX AB SEMS, SPRG NUTS, GROMMETS

12

HEADLAMP ADJUSTERS

ADJUSTER ASSEMBLIES (push-in style), SPRINGS

12

HEADLAMP BEZELS

PH OV SS AB & HXWA SCREWS, NYLON NUTS

16

HEADLAMP BODIES - STD

HXWA AB SCREWS, SPRG NUTS

16

HEADLAMP BODY BRKT's (exc CRM bumper)

HXWA AB SCREWS, SPRG NUTS

8

HOOD & HINGES

HX CONI PP SEMS

8

HOOD LATCH

HXWA CA SCREWS

3

HOOD LATCH VERTICAL SUPPORT

5/16" HXWA AB SCREWS, ARCH SPRG NUTS

4

HOOD LEVELERS (Fr)

RUBBER CAPPED ADJUSTERS, NUTS

6

HOOD POP UP SPRING

5/16" HXWA AB SCREWS, ARCH SPRG NUTS

4

HOOD SCOOP INSERTS - GTO

10-24 X .50 D STAMPED NUTS

4

LICENSE PLATE LAMP

HXWA AB SCREWS

2

MARKER LAMPS (Rr)

.50 D #10 STAMPED NUTS

4

MIRROR & BRACKET - STD

PH OV MS SCREW, PH PN B EXT SEMS

3

NAMEPLATE - GRILLE "GTO"

.56 D #10 STAMPED NUTS

3

NAMPELATE - FENDERS "GTO"

.56 D #10 STAMPED NUTS

6

PARKING LAMPS - OEM LAMPS ONLY

LK NUTS, FLAT WA'S

8

SPOILER (Rr)

CONI KEPS NUTS, MASTIC SEALER

8

TAILAMP SPLASH SHIELDS & BRACKETS

BOLTS, HXWA AB SCREWS, NUTS, RETAINERS

16

TAILAMPS > BODY

.75 D PERI KEPS NUTS, STUDS, SEALER

36

TRUNK LATCH & STRIKER

HX CONI TOOTH SEMS

5

TRUNK LID > HINGES

HX CONI TOOTH SEMS

4

VALANCE (Fr)

5/16" HXWA AB SCREWS, ARCH SPRG NUTS

28

WHEELHOUSE PLUGS

.88" D 1/2" PLASTIC PLUGS

5

WHEELHOUSES

HXWA SCREWS, SPRG & NYLON NUTS, WA'S

40

WHEELHOUSES > RADIATOR SUPPORT

5/16" HXWA AB SCREWS, ARCH SPRG NUTS

12
