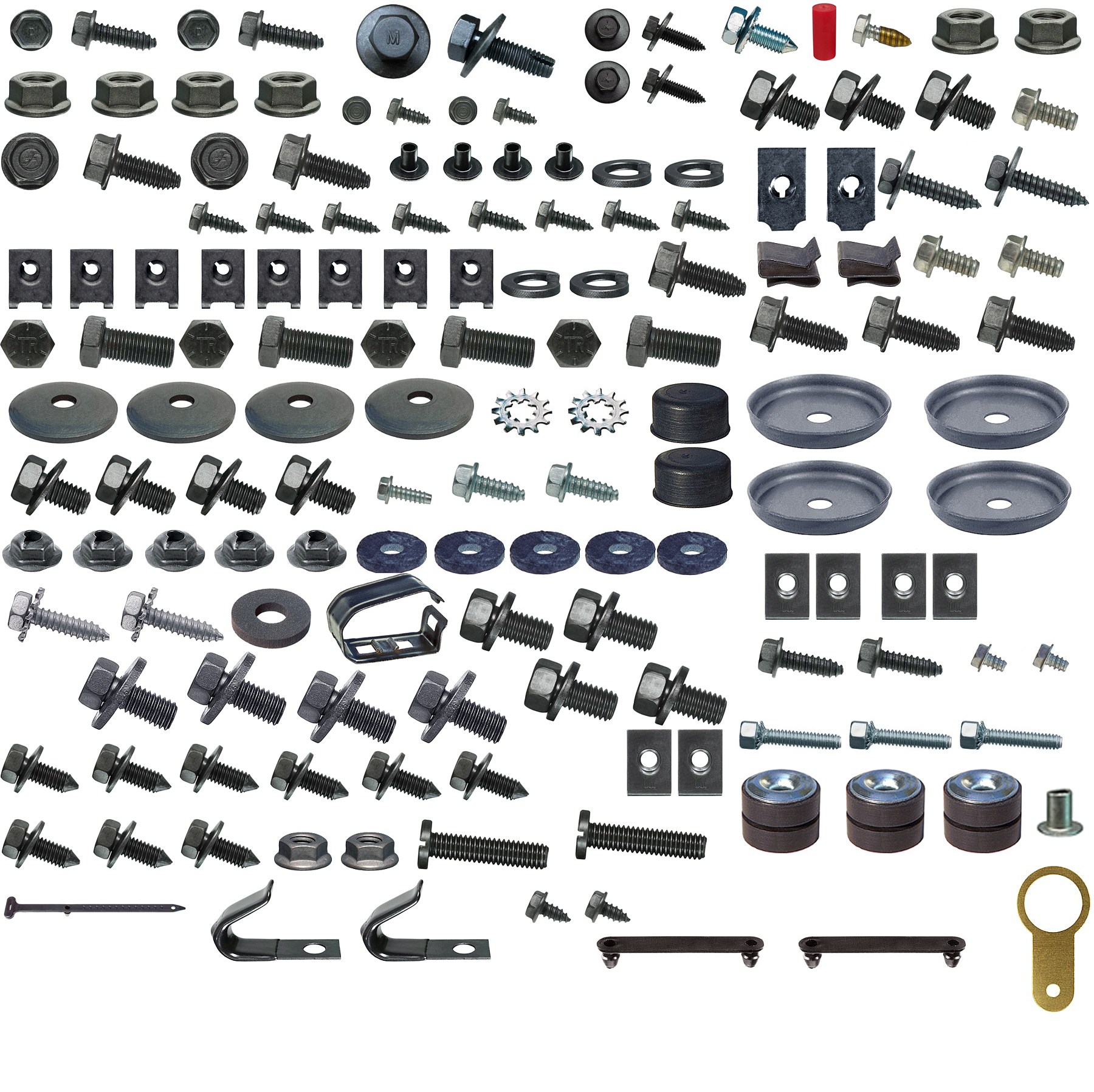

1970 Chevrolet Nova/Chevy II MASTER UNDERHOOD DETAILING KIT (153 PIECES)

ACCELERATOR LEVER SUPPORT

HXWA AB SCREWS

2

BATTERY HOLDOWN CLAMP

HX CONI SEMS

1

BRAKE BOOSTER

FLNG NUTS

4

CLUTCH PEDAL PUSH ROD SEAL

HXWA AB SCREWS

2

CONTROL ARM CROSS SHAFT (UPR)

RETAINERS, HX BOLTS "SSC", WA'S

12

FENDERS > FIREWALL (also in fender kits)

HX CA CONI SEMS

4

FENDERS > RAD SUPPORT (also in fender kit)

HX MS CONI SEMS

4

GRILLE & REINFORCEMENT

HXWA SCREWS, SPR NUTS, BLK RIVETS

22

GRILLE BRACKETS

HXWA CA SCREWS

4

H/L, P/L GROUNDS, JUNCTION BLOCK

HXWA AB & B SCREWS, TOOTH WA'S

5

HEATER BOX & BLOWER HSNG > FIREWALL

HX INT/EXT SEMS, STMPD NUTS, SEALER, SEAL

13

HEATER HOSE CLIP @ WHEELHOUSE

FOLDOVER METAL CLIP

1

HOOD & HINGES

HX CONI SEMS

8

HOOD CATCH & LOCK PLATE

HX PP CONI SEMS, U-NUTS

11

HOOD LEVELERS (Fr)

SCREWS, FLNG NUTS, RUBBER BUMPERS

6

HORN (1)

HX PP CONI TOOTH SEMS, PLASTIC CAP

2

HORN RELAY

HXWA AB SCREW

1

MASTER CYLINDER

FLNG NUTS

2

RADIATOR - 307/327 350

HXWA CA SCREWS

3

RADIATOR FAN SHROUD

HX FLAT SEMS, S CLIPS, SPRNG NUTS

6

RADIO GROUND STRAPS > FIREWALL, FRAME

HXWA AB & T1 SCREWS

5

VOLTAGE REGULATOR

HXWA B SCREWS

3

WHEELHOUSES > FENDERS (also in WH kit)

HXWA CA SCREWS, CUP WA'S, U-NUTS

12

WINDSHIELD WASHER BOTTLE BRACKET

HXWA AB SCREWS

3

WINDSHIELD WASHER NOZZLES

#8 HXWA B SCREWS

2

WIPER MOTOR (Square Style)

GROMMETS, 1.71 OAL STRAP, RIVET, SCREWS

8

WIRING - ALTERNATOR > HEATER HOSE

7.1" FLEXIBLE STRAP

1

WIRING - BLOWER MOTOR/STARTER WIRING

RUBBER COATED J-CLIPS

2

WIRING "GUTTER" > FIREWALL

HXWA AB SCREWS

2

WIRING HARNESS > LH WHEELHOUSE

PUSH-ENDS BLACK PLASTIC STRAPS

2
