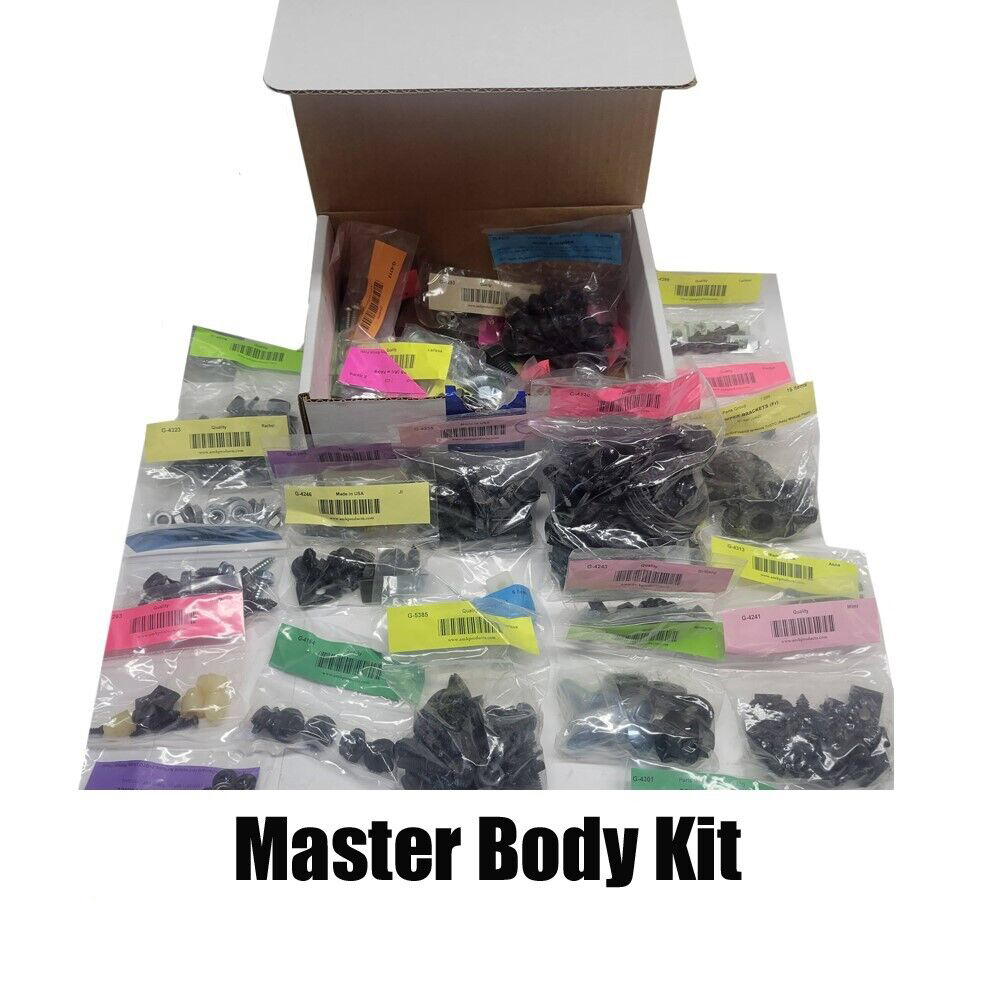

1970 Pontiac GTO/LeMans/Tempest MASTER BODY HARDWARE KIT 516 PIECES

BATTERY TRAY

HXWA CA SCREWS, U-NUT, FLAT WA

5

BODY PLUGS @ REAR QUARTERS

3/4" PLASTIC PLUGS

2

BUMPER (Fr)

HX NUTS, FLAT & CONI TOOTH WA'S

28

BUMPER (Fr) BRACKETS

HX BOLTS, RATCHET TOOTH WA'S, NUTS

16

BUMPER (Fr) REINFORCEMENT > BRKT'S

CRG BOLTS, CONIT TOOTH WA'S, HX NUTS

12

BUMPER (Fr) STABILIZER BRACKETS

HX BOLTS, CONI TOOTH WA'S, U-NUTS

6

BUMPER (Rr)

SS CAPPED, HX & CRG BOLTS, FLAT WA'S

42

BUMPER (Rr) BRACKETS > BODY

POINTED HX BOLTS, FLAT WA'S, RETAINERS

36

BUMPER (Rr) BRACKETS INTERMEDIATE

POINTED HX BOLTS, FLAT WA'S, HX NUTS

16

COWL PANEL PLUGS

.88" D 1/2" PLASTIC PLUGS

2

DOOR HANDLES (outside)

5/16 AF HX .50 CONI SEMS

4

DOOR HINGES

HX CONI TOOTH SEMS

30

DOOR LATCHES

OV HD TT SCREWS

6

FENDERS

HX CONI SEMS, HXWA SCREWS, U-NUTS, SHIMS

40

FENDERS > RAD SUPPORT BRACKETS

HXWA CA SCREWS, FLAT WA'S, U-NUTS

6

FUEL FILLER DOOR

HXWA B SCREWS

2

FUEL FILLER DOOR BUMPERS

.41 D X .75 OAH BUMPERS

2

GRILLES & BRACKETS

.61 D HXWA AB SREWS, U-NUTS

16

HEADLAMP ADJUSTERS

ADJUSTER ASSEMBLIES (push-in style), SPRINGS

12

HEADLAMP BEZELS

SS/CHROME PH OV AB SCREWS, NYLON NUTS

24

HEADLAMP BODIES

HXWA AB SCREWS, FLAT WA'S, FLNG NUTS

16

HOOD & HINGES

HX CONI PP SEMS

8

HOOD LATCH

HXWA CA SCREWS

3

HOOD LATCH RELEASE BRACKET

HXWA AB SCREWS, SPRG NUTS

4

HOOD LATCH VERTICAL SUPPORT

HXWA CA SCREWS, U-NUTS

11

HOOD LEVELERS (Fr)

RUBBER CAPPED ADJUSTERS, NUTS

6

HOOD POP UP SPRING

5/16" HXWA AB SCREWS, ARCH SPRG NUTS

4

HOOD SCOOP INSERTS - GTO

10-24 X .50 D STAMPED NUTS

4

LICENSE PLATE BRACKET (Fr)

HXWA AB SCREWS

4

LICENSE PLATE LAMP

HXWA AB SCREWS

2

MARKER LAMPS (Fr)

CHROME PH PN AB SCREWS, SPRG NUTS

8

NAMEPLATE, GRILLE

#10 X .56 D STAMPED NUTS

2

PARKING LAMPS

SS/CHROME MS's, NYLON NUTS

8

SPOILER (Rr)

CONI KEPS NUTS, MASTIC SEALER

8

TAILAMPS > BUMPER

5/16 HXWA AB SCREWS

6

TRUNK LATCH & STRIKER

HX CONI TOOTH SEMS

5

TRUNK LID > HINGES

HX CONI TOOTH SEMS

4

VALANCE (Fr)

#14 & 5/16" HXWA AB SCREWS, ARCH SPRG NUTS

22

VALANCE (Fr) BRACKET

HXWA AB SCREWS, SPRG NUTS

4

VALANCE (Rr) & BRACKET

PH PN AB FLAT SEMS, NYLON "BATHTUB" NUTS

19

WHEELHOUSE PLUGS

.88" D 1/2" PLASTIC PLUGS

5

WHEELHOUSES

HXWA SCREWS, FLAT WA'S, U & SPRG NUTS

50

WHEELHOUSES > RADIATOR SUPPORT

HXWA CA SCREWS, U-NUTS, FLAT WA'S

6
