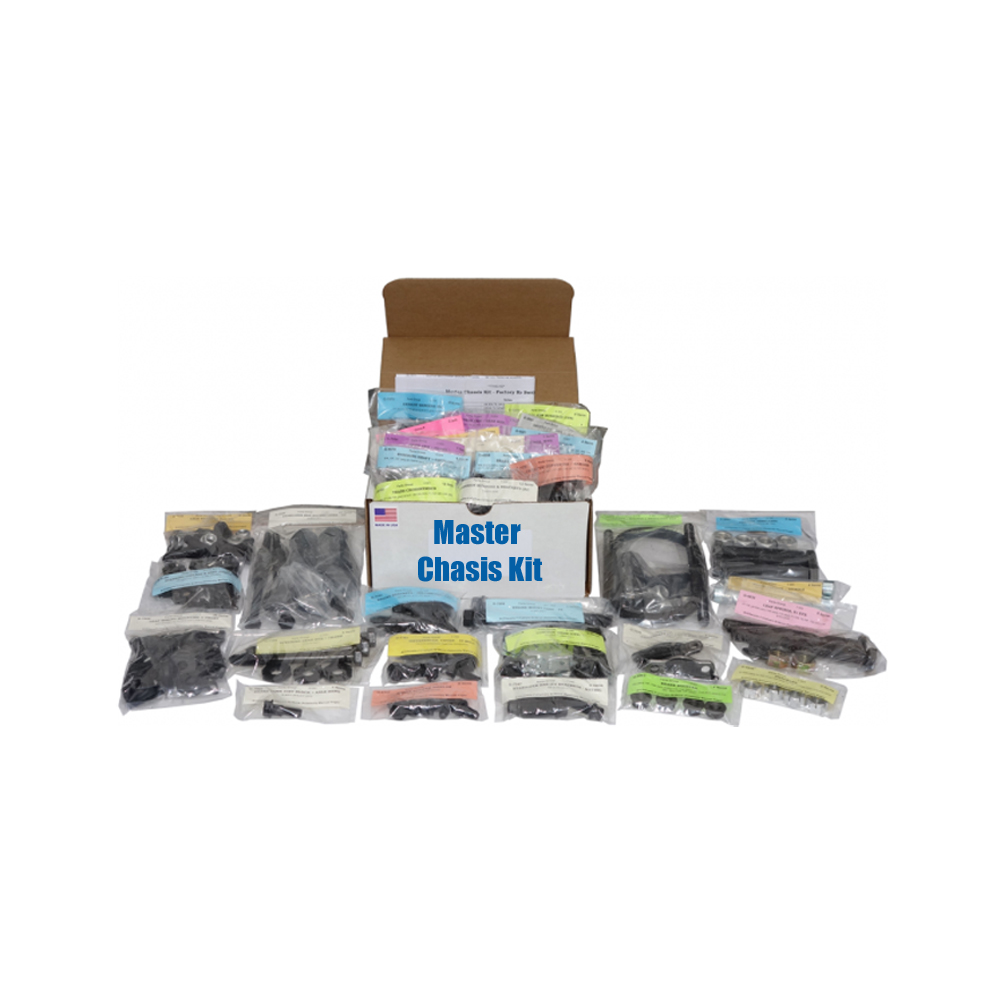

1971 Pontiac Firebird/TransAm MASTER CHASSIS FASTENER KIT V8 WITH REAR SWAY BAR 392 PIECES

ACCELERATOR LEVER SUPPORT

HXWA AB SCREWS

3

AXLE HSNG > SPRINGS

11/16 AF X 5/8 TK GR-8 LOCK NUTS

8

AXLE HSNG > SPRINGS w STABILIZER BAR

LONG T- BOLTS, U-BOLTS, LOCK NUTS

14

AXLE RETAINER PLATES

T-BOLTS, LOCK NUTS

16

AXLE RETAINER PLATES

GR-8 HX BOLTS, NUTS, SPLIT WA'S

24

BRAKE BOOSTER

FLNG NUTS

4

BRAKE CABLES & BRACKETS

WIRE RETAINING CLIPS, SCREWS, NUTS

13

BRAKE CALIPER > SPINDLE LOCATING BOLTS

3.70" L HX SOCKET BOLTS

4

BRAKE CALIPER SHIELDS

HX BOLTS, SPLIT WA's

12

BRAKE DIST BLOCK (Fr) w PB

HXWA T SCREWS

2

BRAKE DIST BLOCK (Rr) > AXLE HSNG

FLNG HD SHLDR BOLT

1

BRAKE DIST BLOCK (Rr) > AXLE HSNG

HX SPLIT SEMS

1

BRAKE HOSE BRACKETS (Fr & Rr)

HXWA T SCREWS

4

BRAKE HOSE RETAINERS

U-RETAINERS

3

CLUTCH BELLCRANK BRACKET > FRAME

HXWA SCREWS

3

CLUTCH PEDAL PUSH ROD SEAL

HXWA AB SCREWS

2

CONTROL ARM BUSHINGS (UPR)

RETAINERS, LOCK NUTS

8

CONTROL ARMS (LWR)

POINTED BOLTS, LOCK NUTS

8

CONTROL ARMS (UPR)

GR-8 KNURL BOLTS, LOCK NUTS, SHIMS

18

DIFFERENTIAL COVER - 10 BOLT

15/16" L SRTD FLNG SCREWS "RBW"

10

DIFFERENTIAL COVER - 12 BOLT

5/8" L SRTD FLNG SCREWS "E"

12

DRIVESHAFT (71-74H w M20, M40)

1.82" C-C HOLE STRAPS, FLNG BOLTS

6

ENGINE BRACKETS > BLOCK

PLACE BOLTS, FLAT WA'S

12

ENGINE MOUNT THRU - 455 GTO & 70-74H

6 3/4" GR-5 HX BOLTS w SPECIAL POINT

2

ENGINE MOUNTS > FRAME - V8

GR-8 HX BOLTS, LOCK NUTS

12

EXHAUST HANGERS - DUAL

HXWA SCREWS, HX SPLIT SEMS

6

FUEL HOSES

FLAT WOUND SPR CLAMPS (BLK, Green)

6

FUEL VAPOR CANISTER (combo does 70-72)

HXWA B SCREWS, FLAT WA, SPRING NUT

6

FUEL VAPOR LINE HOSES (70-71 combo)

FLAT WOUND SPR CLAMPS. BLK not used 70FH

23

GAS TANK

BOLTS, WA'S, NUTS, SCREWS, SPACERS

12

GREASE FITTINGS

STRAIGHT STYLE

10

IDLER ARM > FRAME

GR-8 HX BOLTS, WA'S, NUTS

6

IDLER ARM > FRAME

GR-8 HX BOLTS, WA'S, NUTS

6

LEAF SPRING MOUNTING @ FRONT

HX PP CONI SEMS, SPECIAL U-NUTS

12

LEAF SPRINGS, Fr EYE

GR-8 BOLTS, NUTS, WA'S

8

MASTER CYL BALANCE VALVE w DISC

@ MASTER CYLINDER, HX EXT SEMS

1

MASTER CYLINDER

FLNG NUTS

2

MASTER CYLINDER PUSH ROD > PEDAL

RETAINING CLIP

1

PARKING BRAKE CONTROL > DASH

HX CONI SEMS, FLNG NUTS

4

PITMAN ARM > GEAR BOX

HX NUT, SPLIT WA

2

SHACKLES

11/16" AF MARSDEN NUTS ONLY

4

SHOCKS (Fr) - LWR MOUNTING

HXWA CA SCREWS, U-NUTS

8

SHOCKS (Rr) - UPR MOUNTING

HX SPLIT SEMS

4

SPEDOMETER CABLE > M/T, PG & some M38

1/4-20 X 5/8 HX SPLIT SEMS, RETAINER

2

SPEDOMETER CABLE > M38, M40

5/16-18 X 1/2 HX BOLT, Y-SHAPE RETAINER

2

STABILIZER BAR (Fr) BRACKETS - HD

HX SKT SCREWS, RIVET NUTS

8

STABILIZER BAR (Fr) END LINKS - HD

BLTS, RTNRS, BSHNGS, SPACERS, NUTS

22

STABILIZER BAR (Rr) SUPPORTS

HX BOLTS, WA'S, NUTS

18

STEERING GEAR "RAG" JOINT

12 PT BOLT ONLY

1

STEERING GEAR BOX > FRAME

GR-8 HX BOLTS, FLAT WA'S

6

STEERING LINKAGE & BALL JOINTS

GR-8 LRG HX SLOT NUTS, COTTER PINS

20

STEERING SHAFT > COUPLING

REG & HVY NUTS, SPLIT WA'S

4

SUSPENSION BUMPERS (Fr)

HX LOCK NUTS

2

SUSPENSION BUMPERS & BRACKETS (Rr)

HX PP CONI SEMS, HXWA SCREWS, NUTS

10

TRANS CROSSMEMBER

HX BOLTS, WA'S (RH SIDE), NUTS

14

TRANS INSULATOR

HX BOLTS, FLAT & SPLIT WA'S

10

WHEEL CYLINDERS (2)

HX INT TOOTH SEMS

4
