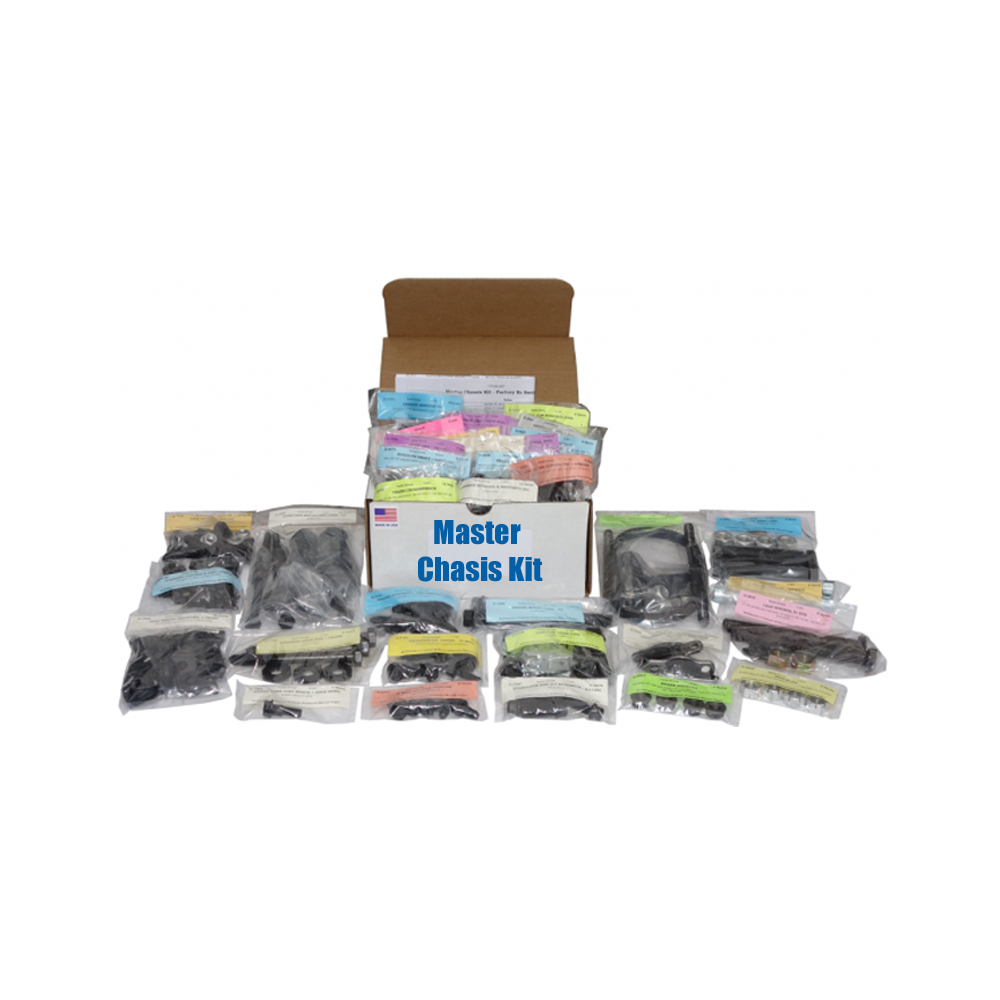

1971 Pontiac GTO/LeMans/Tempest MASTER CHASSIS FASTENER KIT V8 WITH DISC BRAKES EXCLUDING 455 331 PIECES

ACCELERATOR SUPPORT > DASH

HXWA AB SCREWS

5

AXLE RETAINER PLATES

T-BOLTS, LOCK NUTS

16

BRAKE BOOSTER

FLNG NUTS

4

BRAKE CABLES

WIRE TYPE RETAINERS, HX NUTS

5

BRAKE CALIPER > SPINDLE LOCATING BOLTS

3.70" L HX SOCKET BOLTS

4

BRAKE CALIPER BRACKETS & SHIELDS

HX BOLTS, LOCK NUTS

10

BRAKE DISTRIBUTION BLOCK

@ FRONT FRAME. HXWA AB SCREW

1

BRAKE DISTRIBUTION BLOCK (Rr) > BRKT

HX BOLT

1

BRAKE HOSE BRACKETS (Fr) > FRAME

HXWA AB SCREWS

2

BRAKE HOSE RETAINERS

U-RETAINERS

3

CLUTCH BELLCRANK BRACKET > FRAME

LRG HXWA AB SCREWS

2

CONTROL ARM BUSHINGS (UPR)

RETAINERS, LOCK NUTS

8

CONTROL ARMS (LWR)

POINTED BOLTS, LOCK NUTS

8

CONTROL ARMS (Rr)

GR8 FLNG & HX BOLTS, LOCK NUTS

16

CONTROL ARMS (Rr) REINFORCEMENTS

HARDENED FLAT WA'S

2

CONTROL ARMS (UPR)

GR-8 KNURL BOLTS, LOCK NUTS, SHIMS

18

DIFFERENTIAL COVER - 10 BOLT

7/8" L HXWA MACHINE SCREWS

10

DRIVESHAFT > REAR KNUCKLE

U-BOLTS, NUTS, WA'S

10

ENGINE BRACKETS > BLOCK

PLACE BOLTS, FLAT WA'S

8

ENGINE MOUNT THRU - V8

4 7/8" GR-5 HX BOLTS w SPECIAL POINT

2

ENGINE MOUNTS > FRAME

GR-5 HX BOLTS, FLAT WA'S, NUTS

21

EXHAUST HANGERS - DUAL

HXWA AB SCREWS

10

FUEL HOSES

FLAT WOUND SPRING CLAMPS (Yellow)

4

FUEL RETURN LINES - Pontiac & Chevy 396/454

FLAT WOUND SPRING CLAMPS (Red)

4

FUEL VAPOR CANISTER (combo does 70-72)

HXWA B SCREWS, FLAT WA, SPRING NUT

6

GAS TANK

SPECIAL BOLTS, HXWA SCREWS, U-NUTS

8

GREASE FITTINGS

STRAIGHT STYLE

10

IDLER ARM > FRAME

GR-8 HX BOLTS, WA'S, NUTS

6

MASTER CYL BALANCE VALVE w DISC

@ MASTER CYLINDER, HX EXT SEMS

1

MASTER CYLINDER

FLNG NUTS

2

MASTER CYLINDER PUSH ROD > PEDAL

RETAINING CLIP

1

PARKING BRAKE CONTROL > DASH

HXWA AB SCREWS, FLNG NUTS

3

PITMAN ARM > GEAR BOX

HX NUT, SPLIT WA

2

SHOCKS (Fr) - LWR MOUNTING

HXWA CA SCREWS, U-NUTS

8

SHOCKS (Rr)

HXWA SCREWS, TK NUTS, SPLIT WA'S

12

SPEDOMETER CABLE > M/T, PG & some M38

1/4-20 X 5/8 HX SPLIT SEMS, RETAINER

2

SPEDOMETER CABLE > M38, M40

5/16-18 X 1/2 HX BOLT, Y-SHAPE RETAINER

2

STABILIZER BAR (Fr) BRACKETS

HX TY-T SCREWS

4

STABILIZER BAR (Fr) END LINKS

BLTS, RTNRS, BSHNGS, SPACERS, NUTS

22

STABILIZER BAR (Rr)

HX BOLTS, LOCK NUTS

8

STEERING GEAR "RAG" JOINT

12 PT BOLT ONLY

1

STEERING GEAR BOX > FRAME

GR-8 HX BOLTS, FLAT WA'S

6

STEERING LINKAGE & BALL JOINTS

SLOTTED NUTS, COTTER PINS

20

STEERING SHAFT > COUPLING

REG & HVY NUTS, SPLIT WA'S

4

SUSPENSION BUMPER (Rr)

HX NUT

1

SUSPENSION BUMPERS (Fr)

HX NUTS

2

TRANS CROSSMEMBER

HX BOLTS, WA'S (RH SIDE), NUTS

14

TRANS INSULATOR

HX BOLTS, FLAT & SPLIT WA'S

10

WHEEL CYLINDERS (2)

HX INT TOOTH SEMS

4
