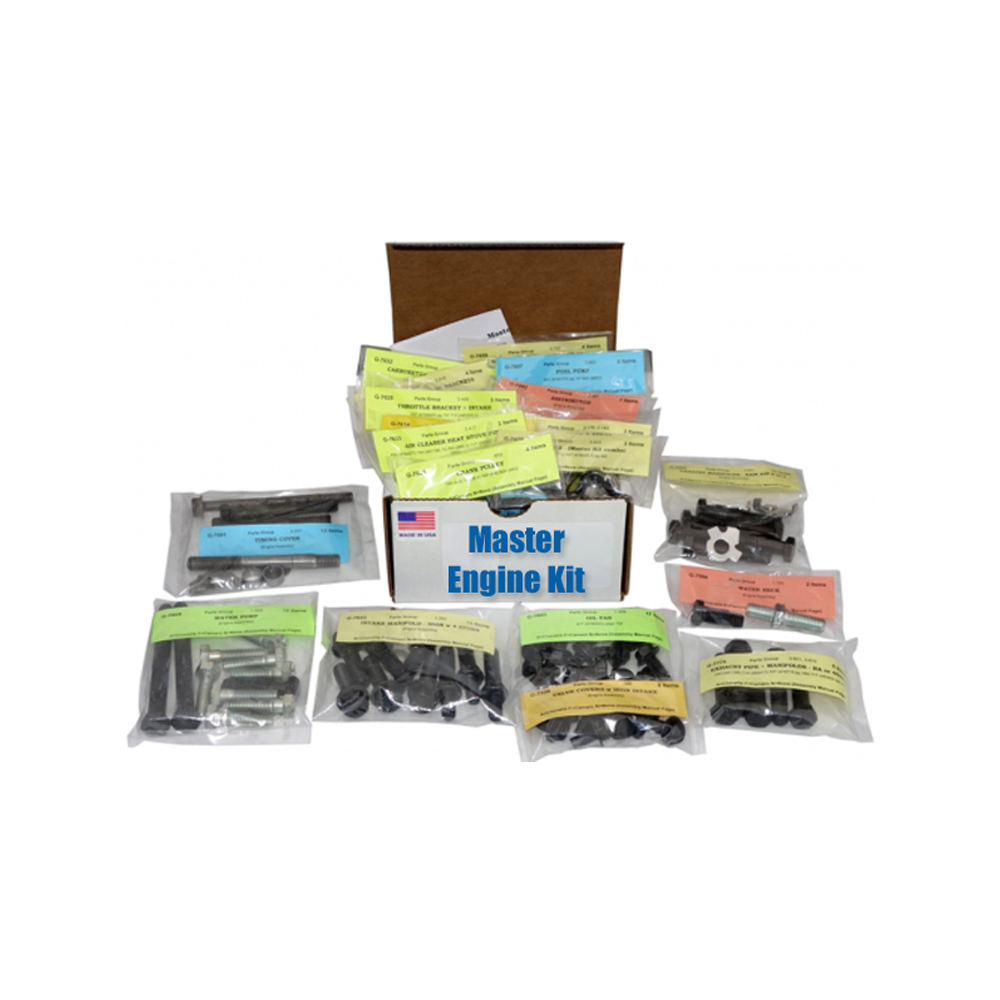

1972 Pontiac GTO/LeMans/Tempest MASTER ENGINE HARDWARE KIT 350 & 400 142 PIECES

AIR CLEANER - All 70H 400

1.62" L STUD, CHROME WING NUT

2

AIR CLEANER HEAT STOVE PIPE

3/8-16 HX NUTS

2

CARBURETOR - ROCHESTER 4V

HX BOLTS

4

CARBURETOR CHOKE THERMOSTAT

HX EXT SEMS

1

CRANK DAMPER

HX BOLT, HVY FLAT WA

2

CRANK PULLEY

5/16-24 X 3/4" PLACE BOLTS

4

DIPSTICK TUBE > AC COMP BRACE

HXWA AB SCREW, SPRG NUT

2

DISTRIBUTOR

HX SPLIT SEMS MS

1

ENGINE BLOCK PLUGS

1/8-27 HX PLUGS

2

ENGINE FAN > CLUTCH

5/16-18 X 5/8" PLACE BOLTS

4

ENGINE FAN CLUTCH > WATER PUMP

DE STUDS, HX NUTS

8

EXHAUST MANIFOLDS - STD 350/400/455

HX BOLTS, SS LOCKS

12

EXHAUST PIPE > MANIFOLDS - STD

STUDS, FLNG NUTS

8

FUEL PUMP

5/16" HX BOLTS, VULCANIZED ALUM WA'S

4

IGNITION COIL & STRAP

HXWA AB SCREW, SLT RND MS, SPRG NUT

3

IGNITION WIRE and MISC BRACKETS

HX BOLTS

4

INTAKE MANIFOLD - IRON w 4 STUDS

HX FLNG BOLTS, HX CLR STUDS, FLAT WA'S

14

OIL FILTER ASSEMBLY > BLOCK

HX BOLTS, SPLIT WA'S, 1 FLAT WA

9

OIL PAN

HXWA MS "W" in ROUND INDENT

17

THROTTLE BRACKET > INTAKE

HX BOLT, HX NUT, FLAT WA

3

TIMING COVER

HX BOLTS, STUDS, DOWELS, WA'S, CLAMP

12

VALVE COVERS w IRON INTAKE

SILVER ZC HXWA MS "W" in ROUND INDENT

8

WATER NECK

HX BOLT, HX CLR STUD, FLAT WA'S

4

WATER PUMP

PLACE BOLTS, HX BOLTS, WA

12
