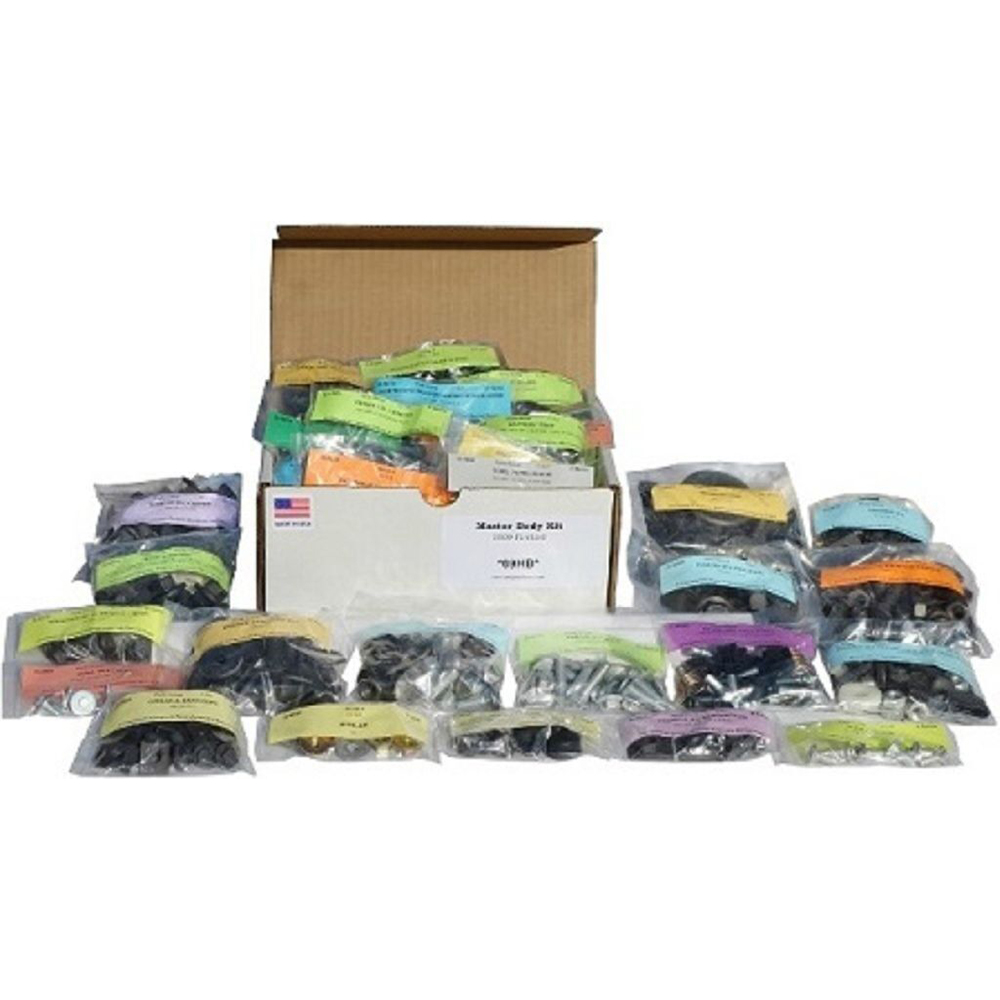

1972 Pontiac GTO/LeMans/Tempest MASTER INTERIOR FASTENER KIT COUPE 410 PIECES

Application

Notes

Pieces

AC AIR OUTLET DUCT @ FLOOR

PH PN AB SCREWS, FLAT WA'S

5

AIR OUTLET ADAPTERS > DASH PAD

.75 D 10-24 STAMPED NUTS

11

AIR VENTS @ DOOR JAMB

CHROME PH TRUSS WA TEK SCREWS

2

ARMREST PAD & BASE @ Fr DOORS

CHROME PH RND & PH FLAT SCREWS

10

ASH TRAY RETAINER

CHROME PH RNDWA SCREWS, SPRG NUTS

7

COAT HOOKS

CHROME PH OV SCREWS

2

CONSOLE & FLOOR BRACKETS

HXWA SCREWS, FLAT WA

13

CONSOLE BRACKET > A/T SHIFTER

HX BOLTS

3

CONSOLE COMPARTMENT & HINGE

HXWA & RNDWA AB SCREWS

7

CONSOLE DOOR BUMPERS

.31 D X .15 H FLAT TOP RUBBER BUMPERS

2

CONSOLE TRIM PLATE - A/T

.56 D #10 STAMPED NUTS

4

COURTESY LAMPS, UNDERDASH

HXWA AB SCREWS, FLAT WA'S, NUT (w AC)

5

DASH PAD

HX SEMS, SCREWS, STAMPED & NYLON NUTS

13

DIMMER SWITCH

HXWA AB SCREWS

2

DOME LAMP

PH PN AB SCREWS

2

DOOR HANDLES (inside) - STD

WIRE RETAINERS

2

DOOR PANELS

CLIPS, PLUGS (flexible!), PH OV AB SEMS

32

ESCUTCHEON @ Rr WINDOW LWR CORNERS

CHROME PH OV AB SEMS

2

FILLER PANELS @ Rr SEAT BACK SIDES

PH OV SCREWS

4

FUSE PANEL > FIREWALL

#10 x 2 1/4 HXWA AB SCREWS w SEALER

2

GLOVE BOX BUMPERS

RUBBER BUMPERS

2

GLOVE BOX DOOR & STOP (69-72 combo)

PH RNDWA SCREWS, SPR NUTS, RIVETS, PLUGS

16

GLOVE BOX LINER & STRIKER

RNDWA AB SCREWS, SPRNG NUTS

12

HEADLINER TACK STRIPS - Fr & SIDES

#8 x 5/16 AF HXWA AB SCREWS

26

HEADLINER TACK STRIPS (Rr)

PH RNDWA SCREWS

15

HEADREST ESCUTCHEONS & FABRIC RTNR

CHROME PH OV AB & PH FLAT SCREWS

16

HEATER CONTROL & SUPPORT > DASH

.50 D 10-24 STMPD NUTS, SCREWS

6

HEATER or AC OUTLET (LH under dash)

HXWA AB SCREWS

2

INSTRUMENT CLUSTER & CLOCK > BODY

HXWA AB SCREWS

8

INSULATION > FIREWALL

RUBBER RETAINERS

5

KICK PANELS w AC

PH OV AB FINWA SEMS

3

KICK PANELS w/o AC

HXWA SCREWS

10

MIRROR (INSIDE) > BRACKET

CHROME SLOT OV SHLDR SCREW, BUSHING

2

PACKAGE TRAY

RETAINERS w BEND TAB

4

PILLAR MOULDINGS - COUPE

PH OV & PH TRUSSWA SCREWS

4

QUARTER TRIM PANELS - COUPE

PH OV SEMS, PH PN SCREWS, SPRG NUTS

18

QUARTER TRIM SAIL PANELS

RETAINING CLIPS

4

RADIO CONTROL SHAFTS

SPECIAL THIN HX NUTS

2

SCUFF PLATES @ DOOR OPENING

SS/CHROME PH OV AB SCREWS

8

SEAT BACK (Fr) STOP BUMPERS

PH PN AB SCREWS

4

SEAT BACK (Fr) STRIKERS (A-body bench)

TRIM HX .62 CONI SEMS w PILOT

4

SEAT BACK (Rr) > FLOOR

HX AB CONI TOOTH SEMS

2

SEAT BACK PANELS

PH PN FLAT SEMS

6

SEAT BACK PIVOTS

RETANING CLIPS

4

SEAT BACK RELEASE BEZELS (Bench only)

CHROME PH OV AB SCEWS

4

SEAT BACK STRAP > SEAT BASE

ROUNDED TRIM HX CONI SEMS

4

SEAT BELT BEZELS (Bench only)

PH RNDWA AB SCREWS

4

SEAT BELT SHOULDER HARNESS RETAINERS

CHROME PH OV AB SCREWS

8

SEAT PIVOT COVERS

SPLIT DART METAL RETAINERS

2

SEAT SIDE PANELS

PH RNDWA AB SCREWS

12

SEAT TRACKS > FLOOR

HX CONI TOOTH SEMS (2), PERI KEPS

8

STEERING COLUMN & BRACES > DASH

HX SEMS, NUTS, COPPER PLATE SCREWS

8

STEERING COLUMN COVER > FIREWALL

HXWA AB SCREWS

2

STEERING COLUMN MOULDING

RNDWA AB SCREWS, NYLON NUTS

8

STEERING COLUMN MOULDING (1971-72)

HX AB FLAT SEMS, NYLON NUTS

8

STEERING COLUMN SEAL RETAINER

HXWA AB SCREWS

7

STEERING WHEEL SHROUD

PN PN AB SCREWS

3

SUN VISOR & MIRROR BRACKETS - COUPE

CHROME PH OV & PH PN AB SCREWS

9

SUN VISOR CLAMPS

CHROME SLOT FILL SCREWS

2

TURN SIGNAL LEVER

PH PN AB SCREW

1

WEATHERSTRIP - QUARTER GLASS "U"

.28 D PH RNDWA AB SCREWS

6

WINDOW CRANK HANDLES

RETAINING CLIPS

4
