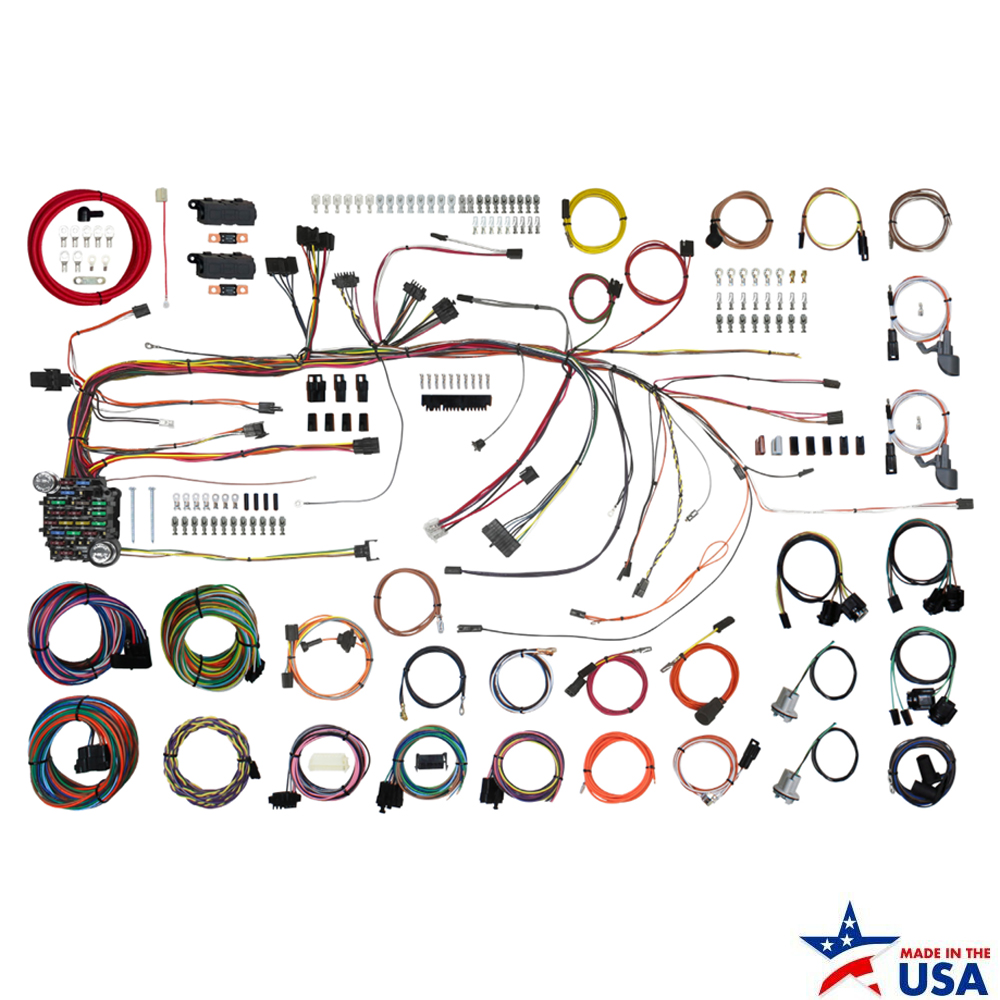

CLASSIC WIRING COMPLETE UPDATE # 510174
UPDATED DASH AND AFTERMARKET COMPATIBILITY:
• COMPLETE MODEL-SPECIFIC REDESIGN: TAILORED SOLELY FOR THE 1970-73 FIREBIRD—
NO LONGER ADAPTED FROM CAMARO HARNESSES.
• FACTORY FEATURES FULLY SUPPORTED: NOW INCLUDES COVERAGE FOR THE GAS PEDAL-MOUNTED T400 KICKDOWN
SWITCH, 70-73 RAM AIR HOOD SCOOP AND DOOR SWITCHES (BOTH CARB-MOUNTED AND FIREWALL-MOUNTED VARIANTS).
• COMPREHENSIVE DASH SUPPORT: DESIGNED FOR BOTH THE STANDARD DASH AND OPTIONAL RALLY GAUGE CLUSTER,
INCLUDING FACTORY-STYLE LIGHTING FOR THE VOLTMETER AND FUEL GAUGE. ALSO SUPPORTS MOST AFTERMARKET
GAUGE PACKAGES.
• HEATING & A/C COMPATIBILITY: INCLUDES A COMPLETE FACTORY-STYLE HEATER HARNESS. OPTIONAL FACTORY
A/C KITS (510996 FOR 1970-71, 510998 FOR 1972-73) AVAILABLE SEPARATELY. AFTERMARKET HEAT/A/C
SYSTEMS ARE ALSO SUPPORTED.
• CONSOLE PRNDL LIGHTING EXTENSION: COMES PRE-WIRED FOR CONSOLE SHIFTER ILLUMINATION.
• TACHOMETER READY: SERVICES BOTH EARLY (1-WIRE) AND LATE (2-WIRE) FACTORY TACH SETUPS.
• ACCURATE REAR LIGHTING HARNESS: INCLUDES ALL CORRECT LAMP SOCKETS AND TRUNK CLIPS FOR A TRUE OEM FIT
AND FINISH
• PARKING LAMP COMPATIBILITY: SUPPORTS BOTH EARLY (1970–EARLY ‘72) AND LATE (LATE ‘72–’73) STYLE
PARKING LAMPS.
• RALLY GAUGE TEMP SENDER HARNESS: INCLUDES CORRECT JUMPER HARNESS AND CLEAR INSTRUCTIONS FOR BOTH
WARNING LAMP AND RALLY GAUGE INSTALLATIONS.
• RAM AIR POWER FEEDS: COMES WITH THREE DISTINCT 12V POWER FEED WIRES FOR VARIOUS RAM AIR CONFIGURATIONS
(RAM AIR HARNESSES SOLD SEPARATELY).
• T400 TRANSMISSION SUPPORT: ALL NECESSARY UNDERHOOD WIRING AND CLEAR INSTRUCTIONS INCLUDED.
